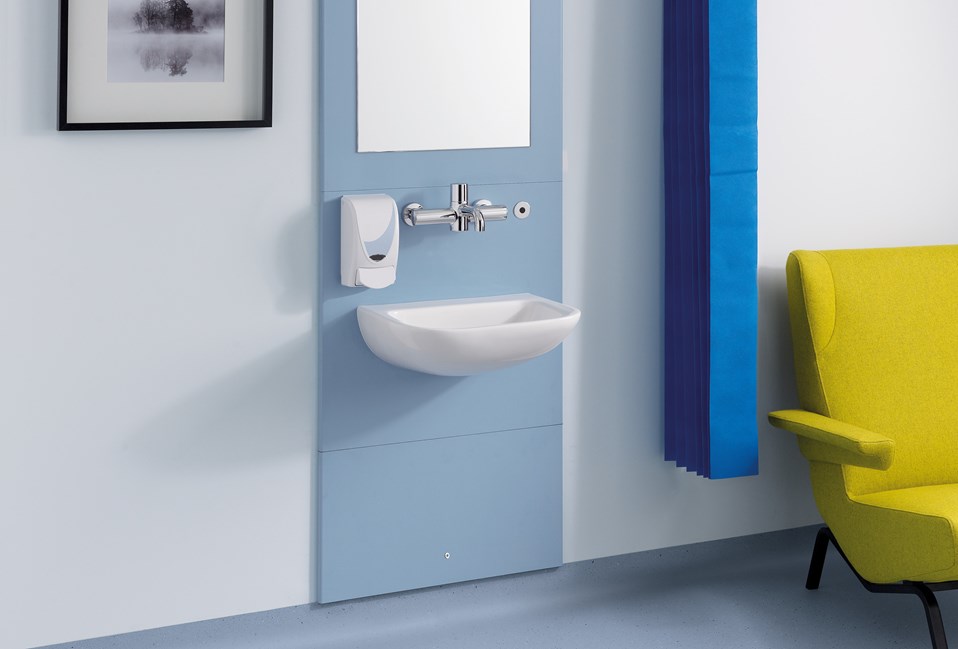

A cost-effective solution that doesn't protrude into your room and is fully compliant with HBN 00-10 Part C. Vepps Recessed Units have been specifically designed to maintain up to 44RwdB sound installation of standard partition walls and avoid the need for interface at both the floor and ceiling junctions.
Part of the Vepps range, the Recessed Units are metal-framed, pre-plumbed systems with hinged and lockable access panels with discreet and tamper proof panel locks for maximum security.
Up to 850mm.
Standard height up to 3000mm.

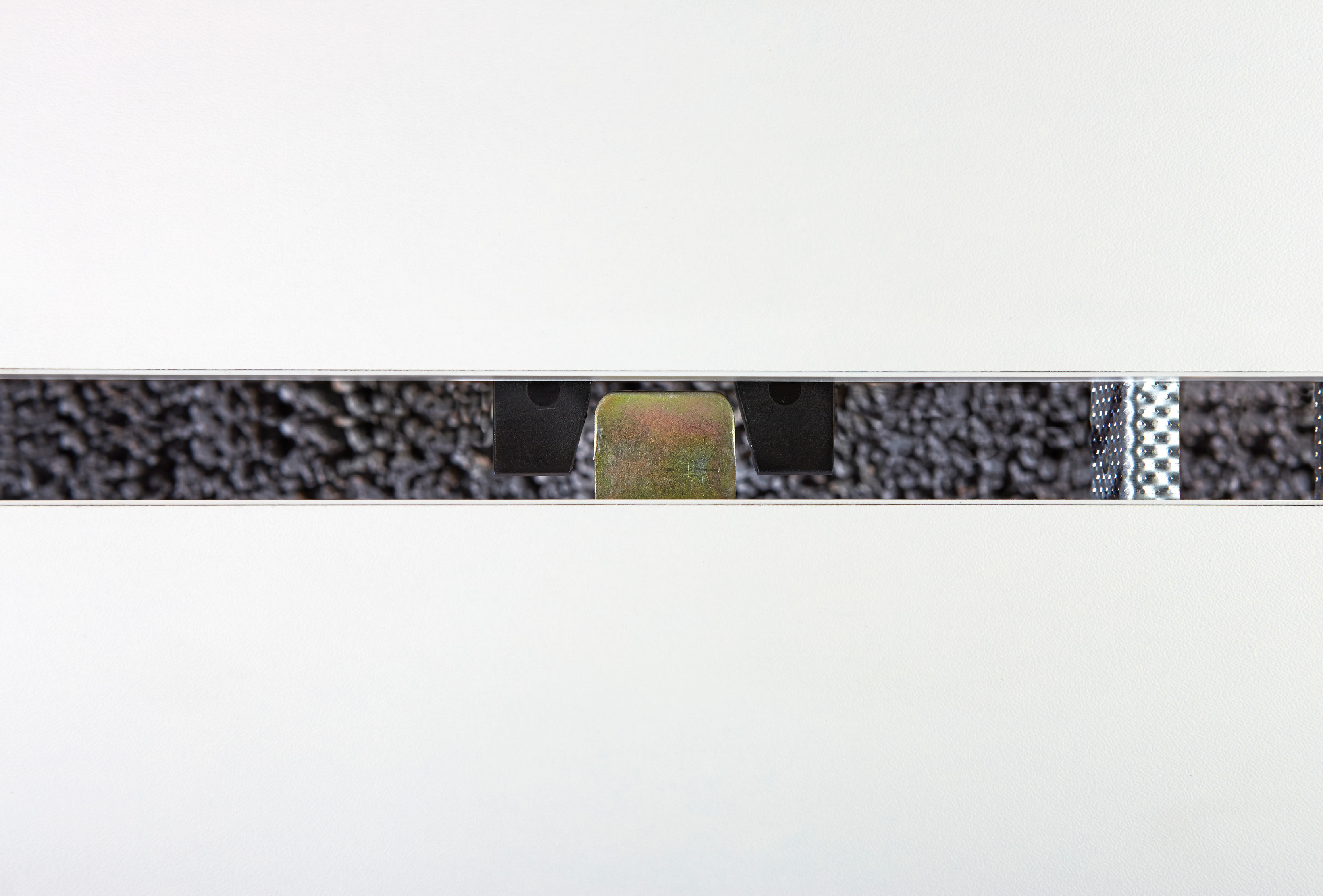

Panel sections fitted to subframe with zinc plated steel clips with butt joints fitted with zinc plated steel dowel clips and mating nylon dowel-docks.
Available in 34 laminate finishes.

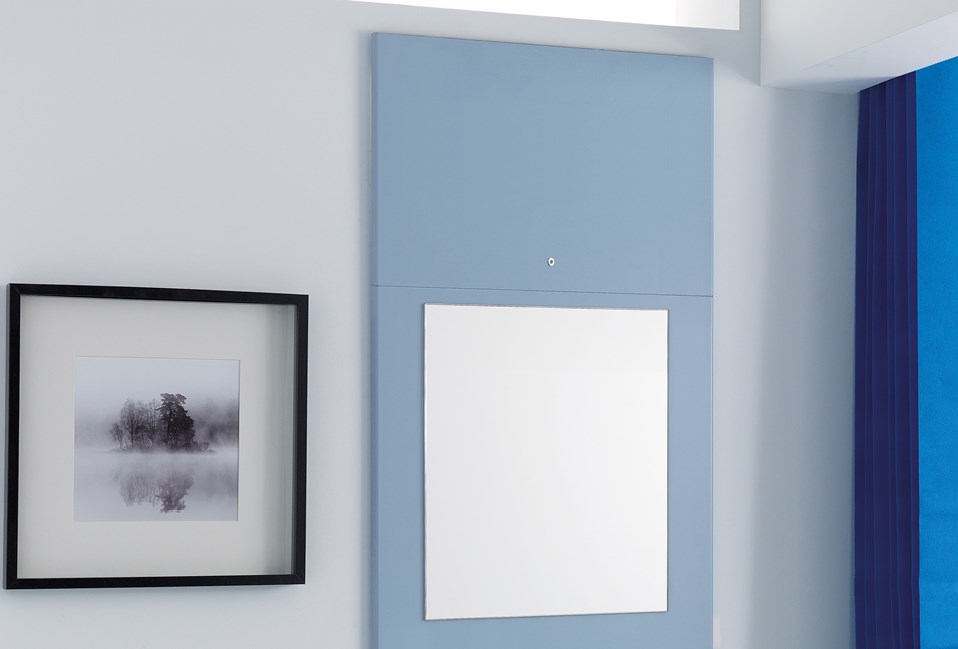

Micro panel lock in polished stainless steel to provide a tamper proof security fixing to the duct panels.

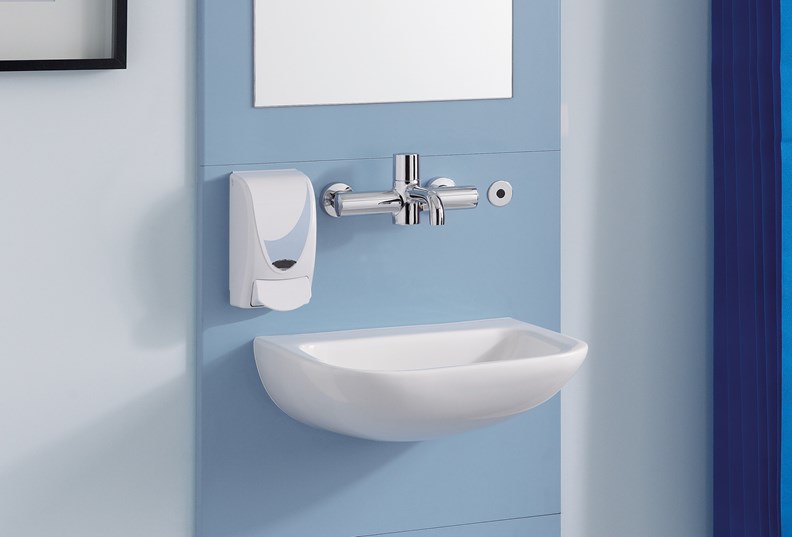

Sanitary appliances are pre-fixed and sealed to Vepps Recessed units, unless stated otherwise, and rigorously tested.
Subframe tie-back system using M8 zinc plated steel tie-back rods and supporting bracketry in zinc plated steel.
Available in all assembly options.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Post formed vertical edges with 1mm matching or contrasting ABS horizontal.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant melamine faced chipboard with high pressure laminate, panels are 18mm nominal thickness. Post formed vertical edges with 1mm matching or contrasting ABS horizontal.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with radiused and polished black edges.
|File name||File type|
|Vepps Recessed Unit MFC & HPL Panels||CAD Blocks|
|Vepps Recessed Unit SGL Panels||CAD Blocks|
|Vepps HPL Post-Formed Hospital Recessed Unit Locks||NBS|
|Vepps HPL Post-Formed Hospital Recessed Unit||NBS|
|Vepps SGL Hospital Recessed Unit Locks||NBS|
|Vepps SGL Hospital Recessed Unit||NBS|
|Vepps Recessed Unit||Fixing Instructions|
A one-stop solution, made-to-measure pre-plumbed system. A metal framed, bespoke system that comes complete with factory fitted and tested sanitaryware. And with fewer tradesmen on site, the Vepps Hygen is quicker, cleaner and more cost-efficient to install. Ideal for a healthcare environment with enhanced infection control protocol.
