A winning combination of value and uncompromising design quality from a leading toilet cubicle manufacturer.
Cubicle Express features robust fittings in Dark Grey ABS, as well as an ambulant/enlarged grab rail pack.
The Cubicle Express range includes cubicle panels, duct panels, vanities, and all the components and fixing instructions you need for a speedy build.
Shaped doors for supervision where needed are available within the Cubicle Express range.
Cubicle Express offers customers a choice of 6 of our most popular laminate finishes.
A winning combination of value and uncompromising design quality from a leading toilet cubicle manufacturer. The Cubicle Express range includes cubicle panels, duct panels, vanities, and all the components and fixing instructions you need for a speedy build.
Available in MFC, Cubicle Express is suitable for dry areas and is supplied in oversized formats for onsite flexibility. You can choose from a selection of colours and shaped, low height doors, plus you have the option of choosing our post-formed pilaster.
1950mm.
1800mm.
100mm.
For dry environments with low risk of vandalism. Panels are manufactured from 19mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with PVC.
19mm nominal thickness melamine faced chipboard (MFC).
Post-formed pilaster option: 19mm nominal overall thickness high pressure laminate (HPL) faced chipboard.
Panels, doors and vanities: 6 colours.
Cubicle hardware: Dark Grey ABS.
Matching ABS lipping.
Dark Grey U-section aluminium.
Dark Grey ABS indicator bolt with emergency release facility and keep, all with concealed fixings.
Dark Grey ABS.
Dark Grey ABS.
Dark Grey UPVC wall channels.

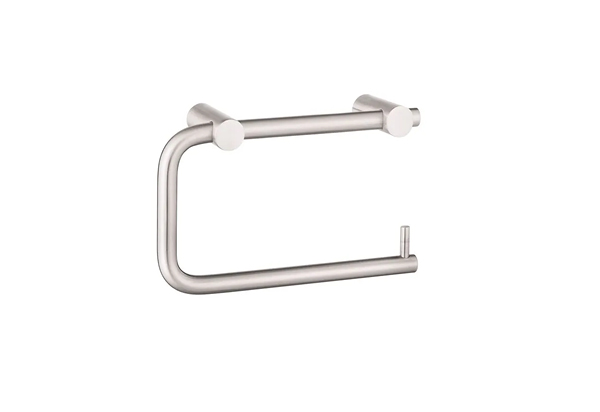

Coat hooks and toilet roll holders available.
File name | File type | |
---|---|---|
Product Portfolio | Brochure | |
Cubicle Express | Brochure | |
Cubicle Express | Technical Datasheet | |
Cubicle Express | Fixing Instructions |
Select from a range of colours and materials, and order samples.
Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our Cubicle Express MFC toilet cubicles and panelling solutions are available in 6 different laminate colours.
Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant. Our Cubicle Express HPL toilet cubicles, panelling solutions and vanity units are available in 6 different laminate colours.
VEN369 | LRV 66
Order a sampleVEN350 | LRV 37
Order a sampleVEN349 | LRV 10
Order a sampleVEN353 | LRV 20
Order a sampleVEN360 | LRV 46
Order a sampleVEN357 | LRV 36

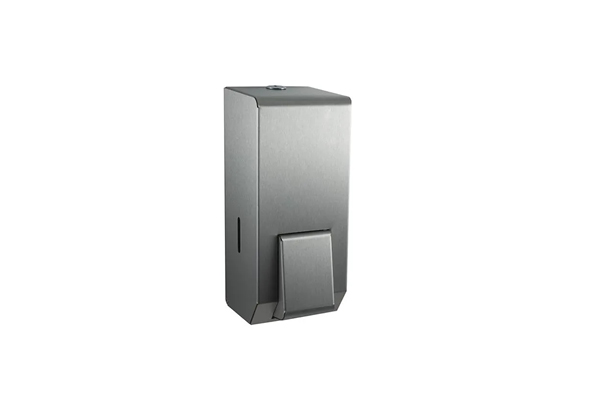

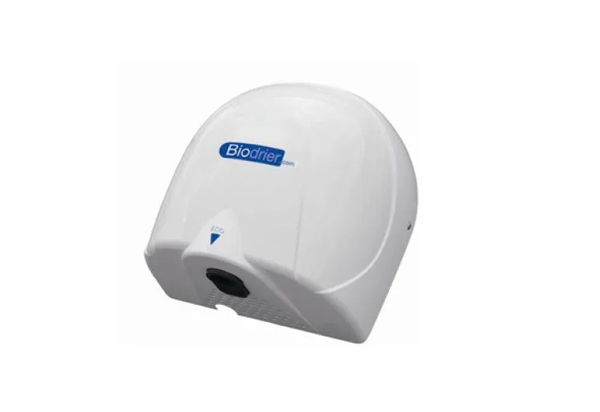

Order a sampleComplement your Cubicle Express toilet cubicles, vanity units and washroom panelling with our wide range of accessories.
