Vepps is our ground-breaking, pre-plumbed panelling system (IPS). It's simple, flexible and compatible with all our products. Plus, it's adaptable enough to work across any sector.
Vepps was the industry's first precision engineered pre-plumbed panelling system with a click-fix assembly into an aluminium frame. This means installation is fast, efficient and cost-effective.
From cutting-edge, designer sanitaryware to simple, budget options, our partnerships with Armitage Shanks, Ideal Standard and SanCeram give you the flexibility to choose industry leading products to complement your washroom.
• Metal-framed, integrated plumbing system.
• Bespoke system, ready to install.
• Factory fitted & tested sanitaryware.
• Ultra strong aluminium frame.
• Unique Venesta 90° linear-bearing hinge™.
• Suitable for wet and dry environments.
• 10-year guarantee.
Proven to be more cost effective over the whole project lifecycle.
Onsite installation 50% faster than traditional plain panel method systems.
Perfect factory finish and panel alignment as well as a 10-year guarantee.
No manual handling and easier access with our 90° linear-bearing hinged panels.
Often the smallest space on the site, fewer tradesmen reduces H&S risk.
Sanitaryware from Ideal Standard, Armitage Shanks and SanCeram.
90% less packaging and board waste is recycled in our biomass burner.

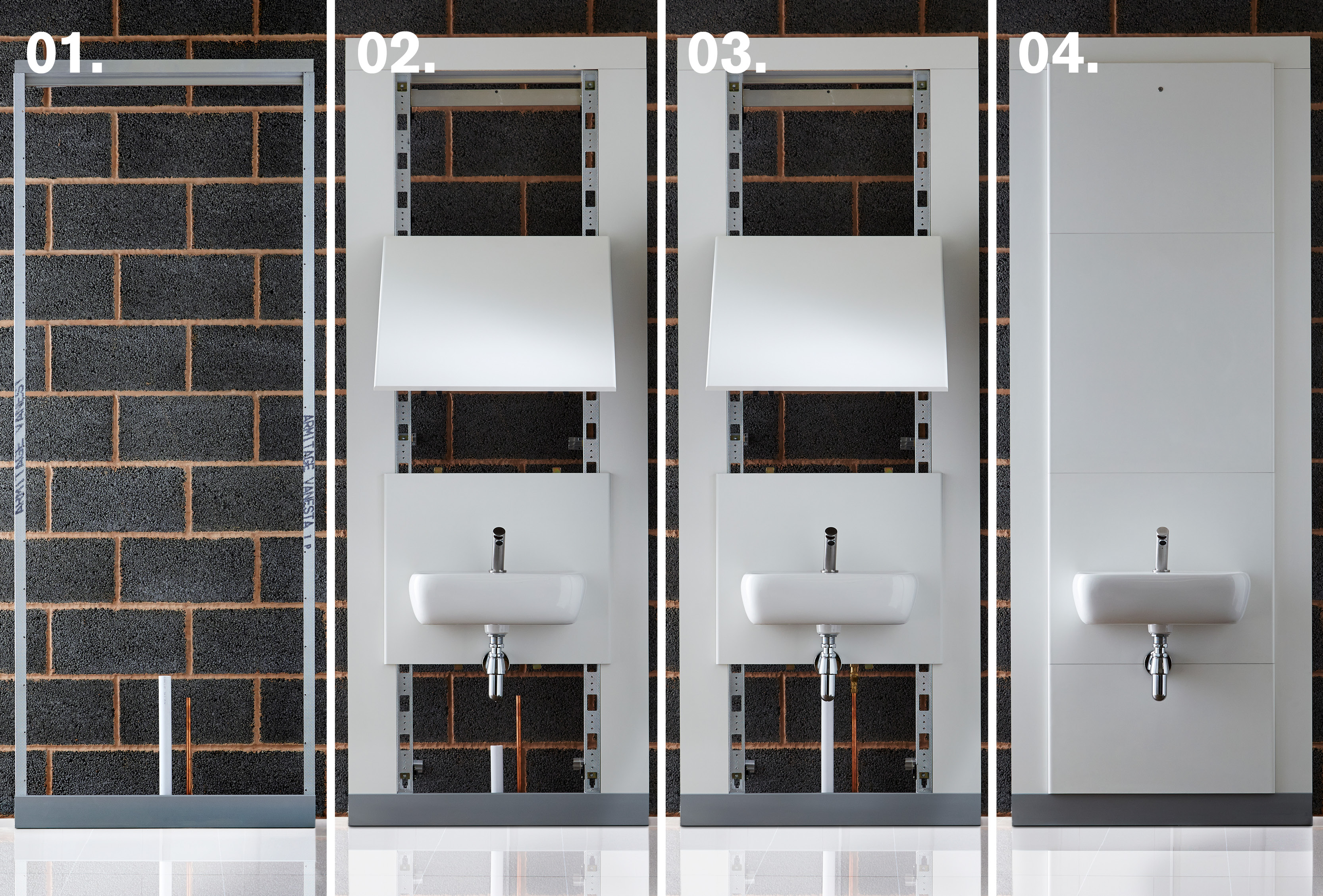

Our design team created Vepps to ensure that’s what you get. There are four easy steps to installation, so you can be up and running in the shortest possible time frame, with a guaranteed quality finish.
01. Once the site has been prepared, fix the aluminium docking frame to the wall, ceiling and floor (20 minutes).
02. Click-fix the first Vepps unit onto the frame and slide into position. Open the mid panel to a fully hinged position. Attach a vertical flashgap to the frame on either side of the unit, screw-fixing to the frame from the face. Fix tie back to the wall. Repeat until all units are in place (30 minutes).
03. Once all the units are in position, connect the plumbing and services (10 minutes*).
04. Simply close the hinged panel and attach the top and bottom panels of the unit. Installation complete (5 minutes).
3000mm (maximum heights subject to change with woodgrain colours).
Bespoke heights available.
100mm (other skirting heights achievable by site packing the baserail).
Shelf height panels are 1200mm as standard, excluding shower units.
Hinged and lockable panels available up to 850mm width.
Available in MFC, HPL, SGL, ColourCoat, ColourCoat High Gloss and Veneer.
MFC, HPL and SGL: 34 colours.
ColourCoat and High Gloss: 10 ColourCoat when specifying Vepps with selected V1 and V2 cubicles or unlimited ColourCoat options (any classic RAL) when specifying Vepps with selected V3 range cubicles.
Veneer: Wide range of Alpi veneer options (varying price points).
MFC and HPL: Matching ABS lipping. Post-formed vertical edge option available with HPL.
SGL: Polished black radiused edge.
ColourCoat and ColourCoat High Gloss: Edges are sprayed with a coat of primer and finished with high gloss pigmented lacquer.
Veneer: ABS lipping to match.
Flashgaps: Flashgaps have unfinished edges except return end flashgaps which will be ABS lipped (or polished if solid grade laminate)
MFC, SGL, ColourCoat, ColourCoat High Gloss and Veneer.
Headrail, baserail manufactured from extruded aluminium section.
Manufactured from rolled galvanised steel section with aluminium cross brace bars. Subframe installed within aluminium docking frame by click-fix nylon location brackets. Back panels fixed to steel section by metal brackets.
Manufactured from zinc plated steel with chrome plated rivets and black glass filled nylon linear-bearing, set at fixed height of 1950mm.
Manufactured from stainless steel with a polished finish in set positions.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness. Edges lipped with ABS. Post-formed vertical edge option available.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Panels are 18mm nominal thickness MDF sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer.
Panels are 18mm nominal thickness MDF sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer.
Manufactured from moisture resistant chipboard faced with real wood veneer, panels are 18mm nominal thickness. Edges lipped with matching ABS lipping.
|File name||File type|
|Vepps MFC & HPL Panels 2BTW||CAD Blocks|
|Vepps SGL Panels 2BTW||CAD Blocks|
|Vepps MFC & HPL Panels 2WA||CAD Blocks|
|Vepps SGL Panels 2WA||CAD Blocks|
|Vepps HPL Post-Formed 100mm Baserail||NBS|
|Vepps HPL Square Edged 100mm Baserail Locks||NBS|
|Vepps HPL Square Edged 100mm Baserail||NBS|
|Vepps MFC 100mm Baserail Locks||NBS|
|Vepps MFC 100mm Baserail||NBS|
|Vepps SGL 100mm Baserail Locks||NBS|
|Vepps SGL 100mm Baserail||NBS|
|Vepps Veneer 100mm Baserail Locks||NBS|
|Vepps Veneer 100mm Baserail||NBS|
|Vepps ColourCoat 100mm Baserail Locks||NBS|
|Vepps ColourCoat 100mm Baserail||NBS|
|Vepps ColourCoat High Gloss 100mm Baserail Locks||NBS|
|Vepps ColourCoat High Gloss 100mm Baserail||NBS|
|Vepps HPL Post-Formed 100mm Baserail Locks||NBS|
|Vepps Hinged Panels||Fixing Instructions|
