Privacy is becoming increasingly important, especially in the education sector. Centurion is specified for its size, strength and durability. Easy to clean, robust and vandal-proof, these cubicles are suitable for any wet or dry environment.

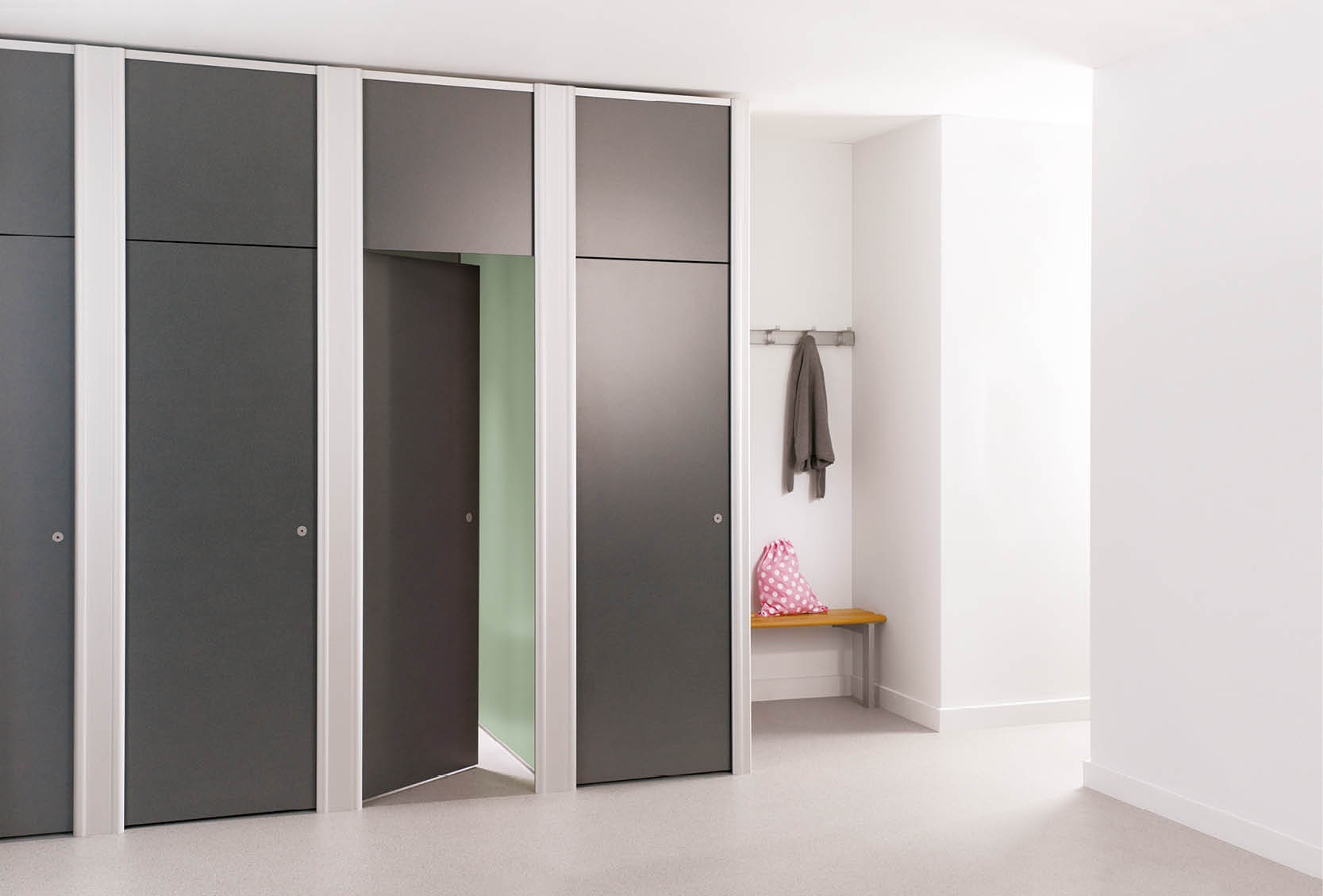

A handsome design in any setting, Centurion Full Height cubicles are supplied with full height toilet partitions and overpanels above the doors, creating a private space, ideal for unisex toilets and changing rooms.
This range can also be extended further reducing the gap to 5mm all round for a full privacy option.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness. Edges lipped with ABS.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL and SGL: 34 colours.
Cubicle hardware: Satin anodised aluminium.
MFC & HPL: Matching ABS lipping.
SGL: Polished black radiused edge.
Extruded aluminium headrail available in satin anodised finish.
Satin anodised aluminium pilasters which extend down to floor level and fixed to floor mounting blocks. Extruded zinc sections available in Light Grey satin anodised aluminium.
Universal aluminium anti-tamper safety hinge. Outward opening rise and fall hinge option available.
Partitions fixed to walls using aluminium channels.
Indicator bolt with emergency release facility and keep, all with concealed fixings.
Coat hooks and toilet roll holders available.
|File name||File type|
|Centurion & Centurion Full Height||Brochure|
|Centurion Full Height MFC & HPL 2BTW||CAD Blocks|
|Centurion Full Height SGL 2BTW||CAD Blocks|
|Centurion Full Height MFC & HPL 2WA||CAD Blocks|
|Centurion Full Height SGL 2WA||CAD Blocks|
|Centurion Full Height HPL||NBS|
|Centurion Full Height MFC||NBS|
|Centurion Full Height SGL||NBS|
|Centurion Full Height||Fixing Instructions|
|Centurion & Centurion Full Height||Technical Datasheet|
