Unity

This clean, modern cubicle design is our most popular economical range.

Venesta Washrooms Toilet Cubicles V1 Unity1

Flush-fronted, floating appearance.

Unity's floating, flush front always makes a big impact. Great value without compromising on quality or functionality, there's four material options to choose from, with 34 laminate colours or 10 ColourCoat or High Gloss finishes. The design possibilities are endless.

The simple and striking design, which can also be specified in full height, is finished with satin anodised aluminium fittings and always makes an impact. In fact, we like Unity so much, we specified it for our own office toilets.

Features

  • V1 - Low cost cubicle range.
  • Suitable for every type of washroom environment.
  • Full height options available, with reduced floor clearance for increased privacy.
  • Satin anodised aluminium fittings.
  • Slimline aluminium profile headrail in satin anodised finish.
  • Flush fronted, floating finish in a wider choice of colours and laminates.
Venesta Washrooms Toilet Cubicles V1 Unity2
Simple yet striking economical washroom cubicles.

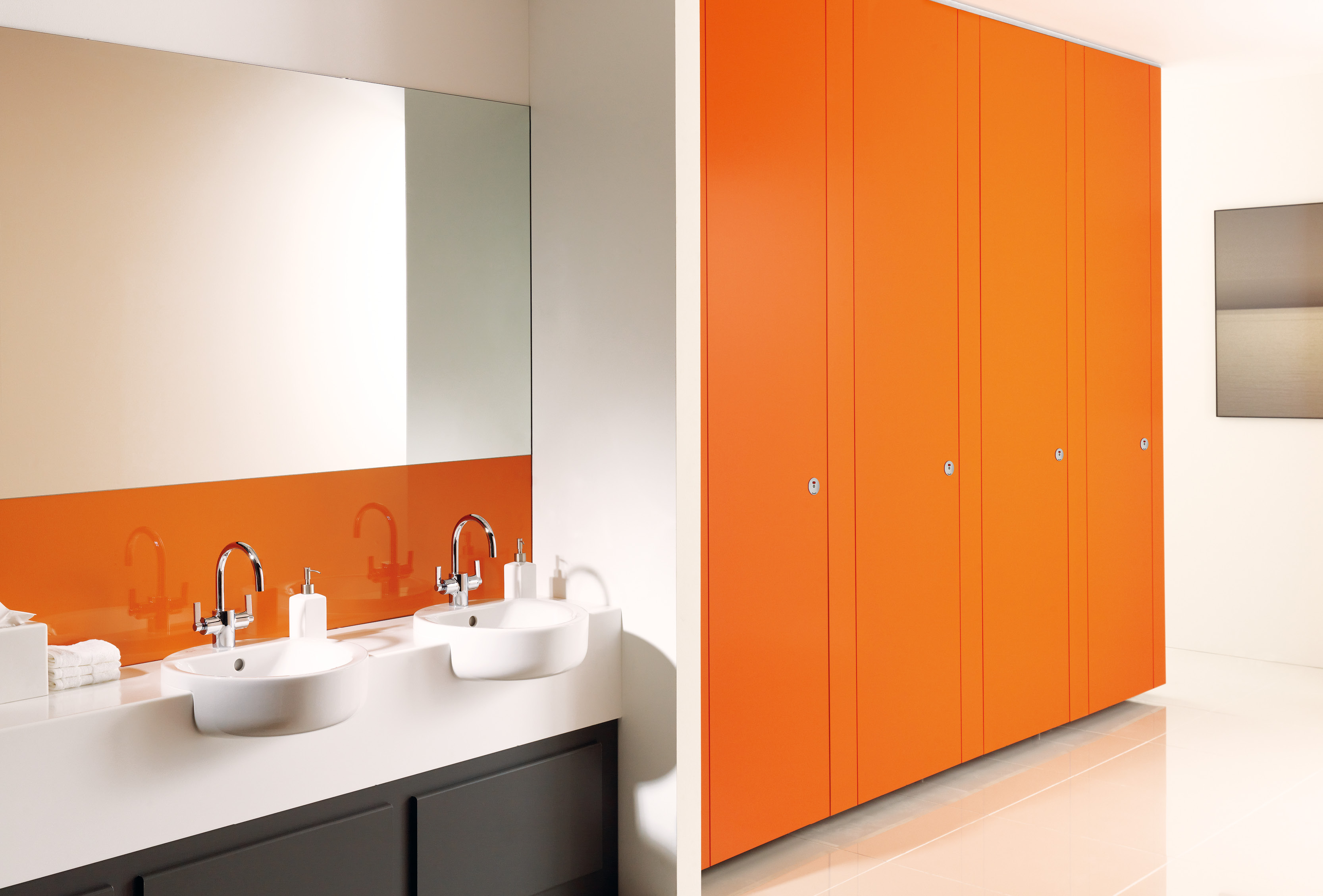

Venesta Washrooms Toilet Cubicles V1 Unity1
Unity toilet cubicles are availabe in a wide range of materials and colours.
Venesta Washrooms Toilet Cubicles V1 Unity5
Unity's pedestals are set back on the cubicle's partitions to give the range its "floating" appearance.
Venesta Washrooms Toilet Cubicles V1 Unity6
Sleek and robust cubicle hardware comes as standard.

The complete range...

Explore Unity toilet cubicles - standard height, full height and privacy options.

venesta-washrooms-toilet-cubicles-unity-thumbnail

Unity

Venesta Washrooms Toilet Cubicles V1 Unity Full Height1

Unity Full Height

Venesta Washrooms Toilet Cubicles V1 Unity Privacy1

Unity Privacy

Venesta Washrooms Toilet Cubicles V1 Unity Full Height Privacy1

Unity Full Height Privacy

Colours & materials

Select from a range of colours and materials, and order samples.

  • Laminate

    Laminate (MFC/HPL/SGL)

    MFC

    Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 18mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.

    HPL

    Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 18mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.

    SGL

    If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.

  • ColourCoat

    Colour Coat

    ColourCoat is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat have a gloss value of 20%.

    Edges are sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer.

    Note: for V3 ColourCoat products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

  • ColourCoat High Gloss

    Colour Coat High Gloss

    ColourCoat High Gloss is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat High Gloss have a gloss value of 80%.

    Edges are sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer.

    Note: for V3 ColourCoat High Gloss products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

Colour and material library

Product specifications

  • Overall height

    HPL: 2070mm.
    SGL: 2065mm.
    ColourCoat & ColourCoat High Gloss: 2070mm.
    Bespoke heights available.

    Floor clearance

    Standard - 50mm.

    Maximum depth

    HPL: 2045mm.
    SGL: 1920mm.
    ColourCoat and ColourCoat High Gloss: 2045mm.

  • HPL

    For more heavily used washrooms, panels are heat, scratch, impact and cigarette burn resistant. Moisture-resistant chipboard faced with high pressure laminate. Edges lipped with ABS. Doors and pilasters are 35mm nominal thickness with an MDF core, partitions are 18mm nominal thickness.

    SGL

    Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.

    ColourCoat

    Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness.

    High Gloss

    Panels have an MDF core. Doors and pilasters are sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness.

  • Panels and doors

    Available in HPL, SGL, ColourCoat and ColourCoat High Gloss.

    Colour finish

    HPL and SGL: 34 colours.
    Colour Coat & High Gloss: 10 colours.
    Cubicle hardware: Satin anodised aluminium.

    Edge treatment

    HPL: Matching ABS lipping.
    SGL: Polished black radiused edge.
    ColourCoat: Edges sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer.
    High Gloss: Edges are sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer.

    Headrail

    Slimline aluminium profile headrail in satin anodised finish. 3 part fixing system which allows cubicles to finish only 20mm below ceiling height.

  • Hinge

    Satin anodised aluminium (for HPL) or stainless steel (for SGL), modular rise and fall butt hinge, fitting whichever handing is needed. Able to be set to fall open or closed.

    Wall fixing

    All channels are aluminium with a satin anodised finish.

    Indicator bolt

    Satin anodised aluminium internal mortice lock/keep and flip indicator bolt.

    Pedestal

    50mm floor clearance - adjustable satin anodised aluminium pedestal. 20mm floor clearance - in-line stainless steel pedestal.

  • Accessories

    Coat hooks and toilet roll holders available.

Case studies

Take a look ...

Martin Rees, our Chairman and Head of Design and Technical explains all the features and benefits of Unity. Take a sneaky peak into our factory and see how easy it is to install a very stylish, yet economical washroom range.

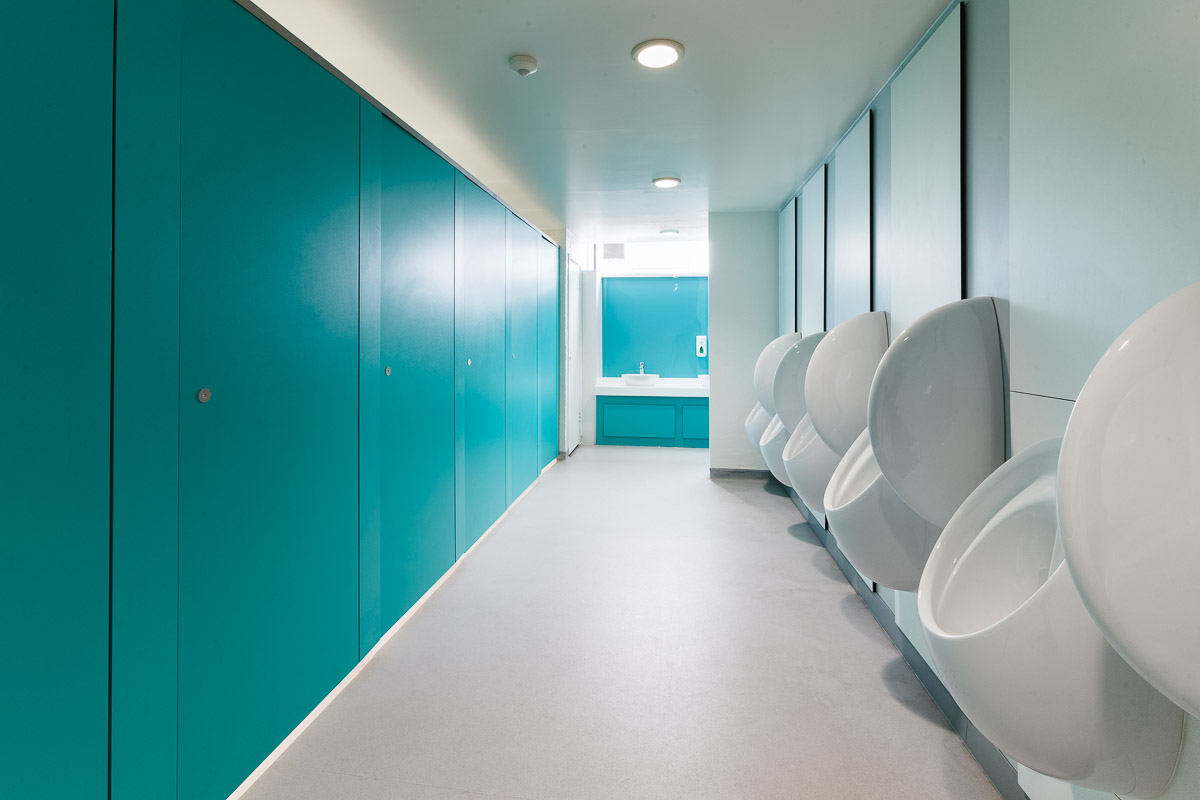

venesta-washrooms-toilet-cubicles-unity-full-height-privacy-vepps-ips-panelling-urinals-magdalen-college-school3
