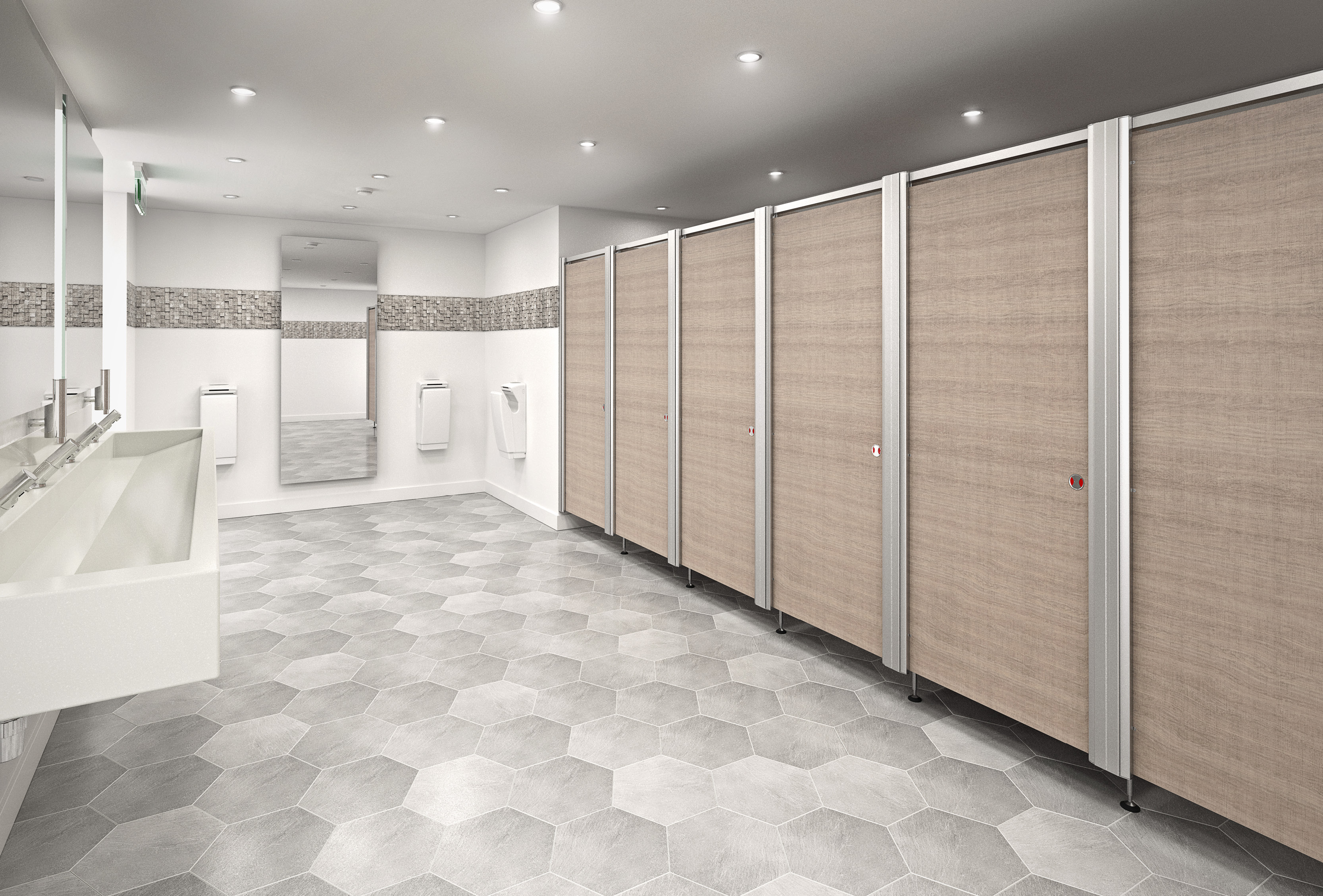

Designed to comply with the Document M regulation, System M has a proven track record of being able to cope with the demands of high traffic environments; in particular airports, retail outlets and public buildings, such as schools and hospitals.
The innovative pivoting pilaster design allows the door to be opened outwards gaining fast access to a patient without the use of tools. Resetting is simple with no replacement parts and no compromise to this stylish design.
Standard floor clearance 150mm.
System M cubicle partitions are manufactured in 26mm medium density fibreboard (MDF) faced both sides with high pressure laminate (HPL) and lipped with ABS. For more heavily used washrooms, panels are heat, scratch and impact resistant.
Doors are manufactured in 13mm solid grade laminate (SGL) with radiused edges. Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water.
Panels HPL and doors SGL.
HPL and SGL: 34 colours.
Cubicle Hardware: Stainless steel and satin anodised aluminium.
HPL: Lipped with ABS edging.
SGL: Polished black radiused edge.
Satin anodised aluminium “U” section headrail.
Satin anodised aluminium lift off rise and fall hinges.
Satin anodised aluminium discreet T-section.
Stainless steel circular faced indicator bolt with emergency release and nylon keep.
Stainless steel, height adjustable for uneven floors with concealed fixings.
Coat hooks and toilet roll holders available.
|File name||File type|
|System M 2BTW||CAD Blocks|
|System M 2WA||CAD Blocks|
|System M||Fixing Instructions|
|System M||Technical Datasheet|
This dedicated video shows how System M toilet cubicles are put together and crucially how to release a locked cubicle door in case of an emergency.
