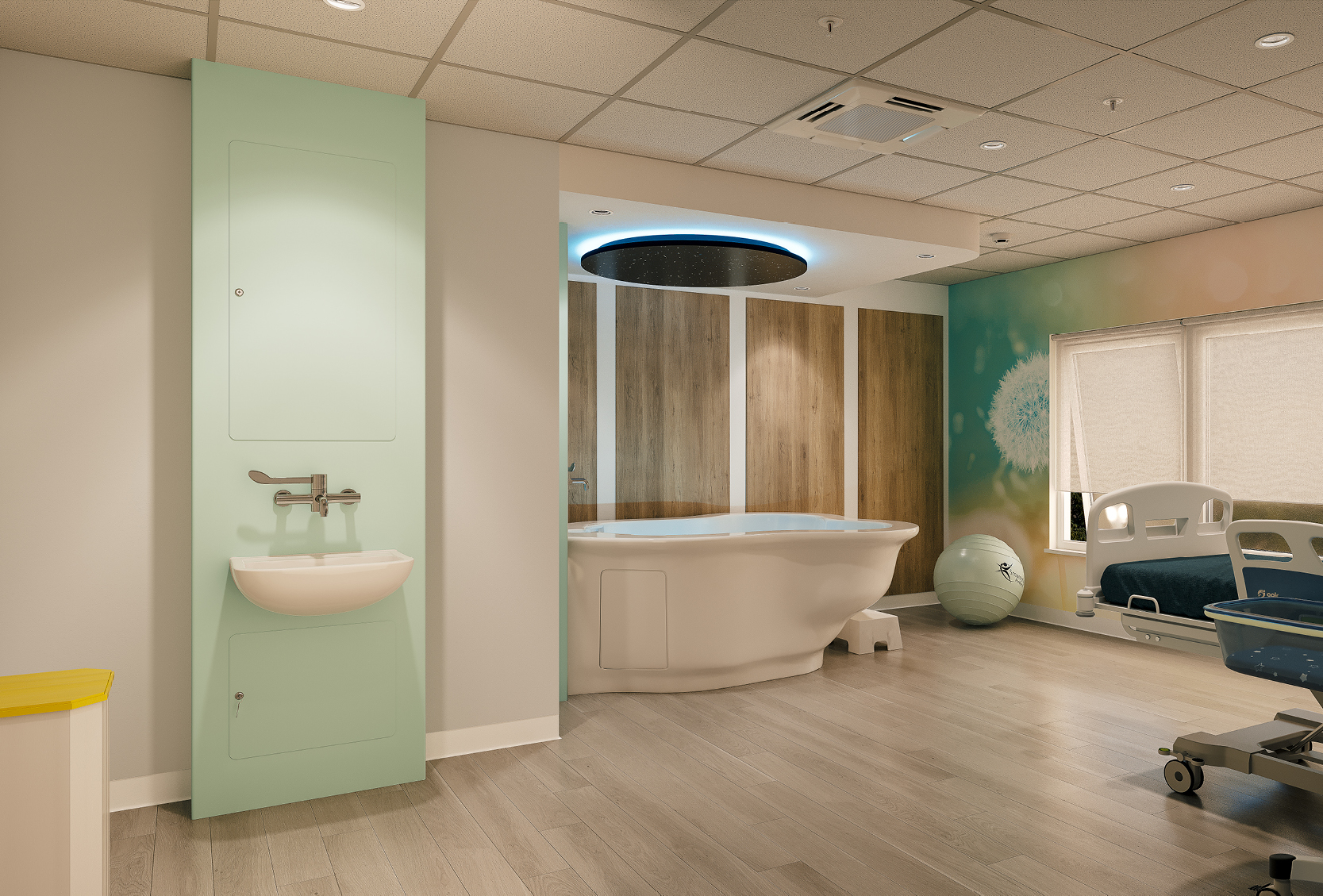

Vepps Hygen PVC

A trusted standalone pre-plumbed healthcare IPS solution that's made from up to 45% recycled content, with a hygienic closed cell core that offers no organic and moisture growth within the product.

Venesta Washrooms Vepps Hygen Pvc Healthcare

Vepps Hygen PVC

A fully compliant, low waste impact healthcare IPS solution.

Vepps Hygen PVC is our all-new HBN 00-10 Part C compliant standalone healthcare IPS solution, made from up to 45% recycled content. This new addition to our trusted Vepps Healthcare range boasts a closed-cell PVC foam substrate core that's built for long-term performance, especially in wet environments. The PVC foamboard core has a waterproof guarantee for the lifetime of the product.

Manufactured from a seamless piece of material with round corners and no joints, Vepps Hygen PVC features a hygienic closed cell core with no organic and moisture growth within the product. Specify the unit's hinged access panels, that make ongoing maintenance easier than ever, with your choice of flush or overlapped doors. Both options minimise dirt traps and eliminate contamination zones.

Installation times are quicker than ever, as each panel's weight is far less compared to traditional alternatives. All sanitaryware is pre-plumbed and tested, with load testing of 300kg, to ensure each unit is delivered to site ready to be installed right away. What's more, Hygen PVC's smooth, sealed surfaces prevent absorption of liquids and can withstand frequent cleaning using disinfectants, bleach, and hospital-grade chemicals, ideal for busy healthcare settings.

Venesta Washrooms Vepps Hygen Pvc Healthcare2

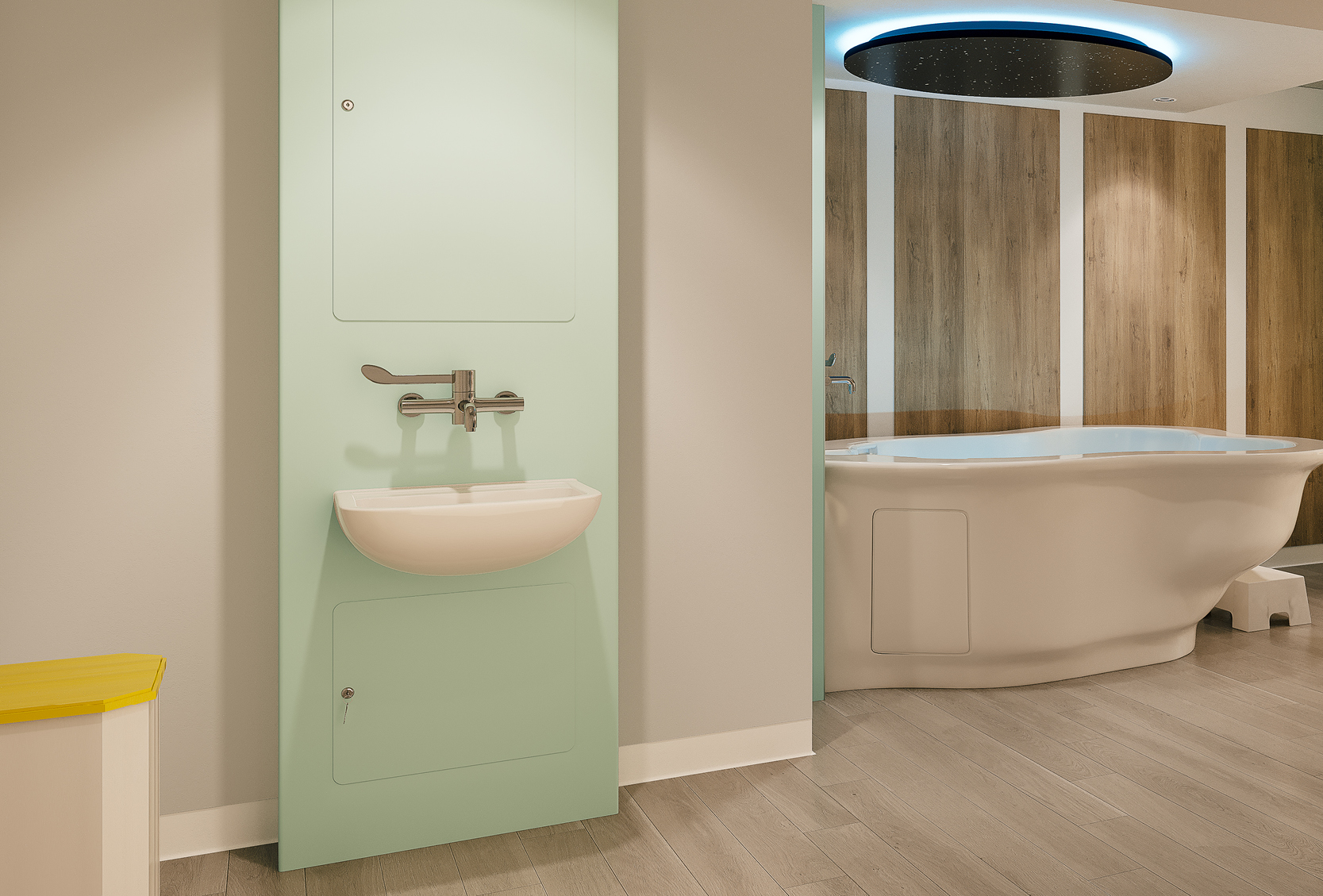

The PVC foamboard core has a waterproof guarantee for the product's lifetime.
Venesta Washrooms Vepps Hygen Pvc Healthcare3

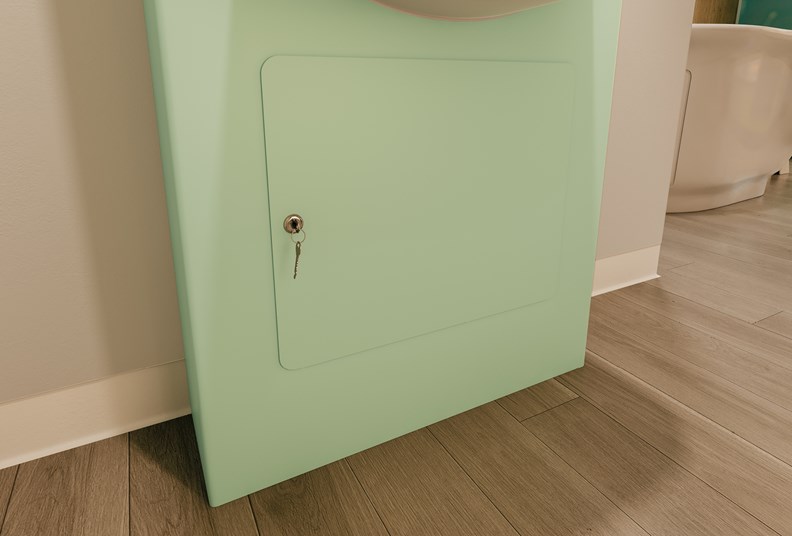

Design flexibility with a choice of 34 on-trend finishes.
Venesta Washrooms Vepps Hygen Pvc Healthcare5

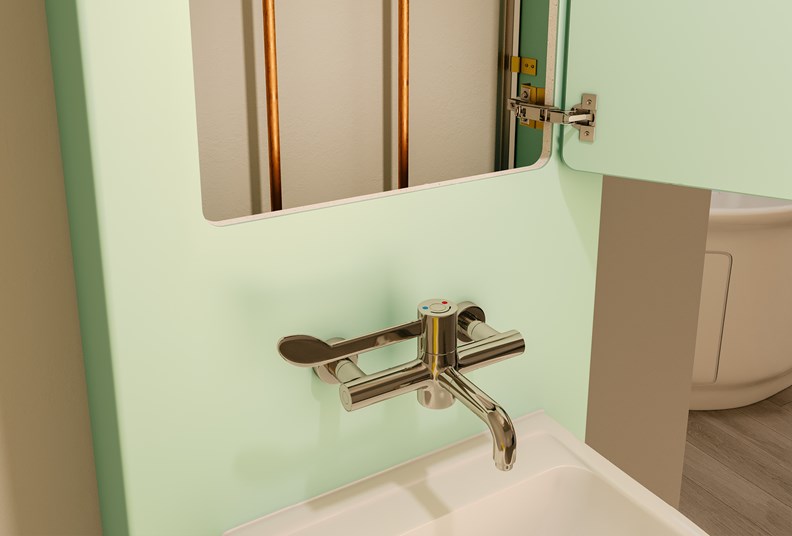

A tried and tested system, built for long-term performance in wet environments.
Venesta Washrooms Vepps Hygen Pvc Healthcare6

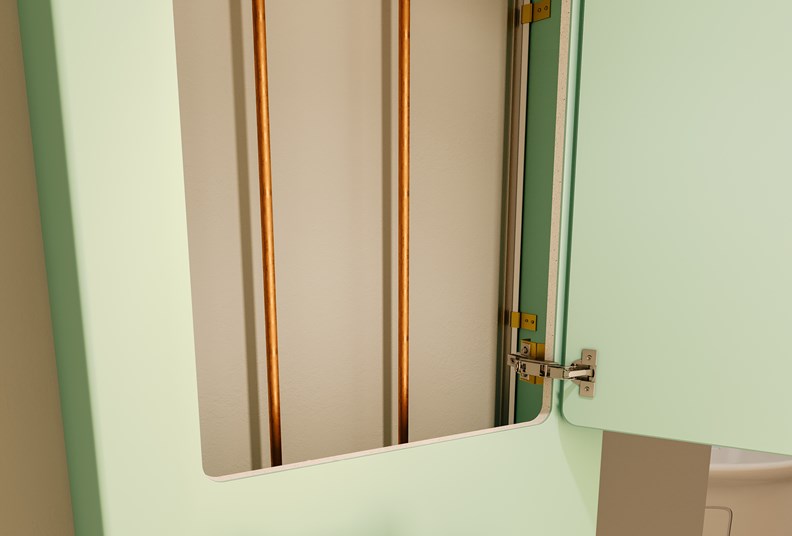

Lighter than traditional alternatives, ideal for speedy installation.

Vepps Hygen PVC features & benefits

  • The PVC foamboard core has a waterproof guarantee for the lifetime of the product.
  • Hygienic closed cell core offers no organic and moisture growth within.
  • A low waste impact solution made from up to 45% recycled content.
  • Lightweight material compared to traditional alternatives, making onsite installation quicker and easier.
  • Access panels incorporate a 3mm self adhesive C211 FR flame retardant neoprene sponge seal.
  • Seamless, joint-free surfaces guaranteed.
  • Colour matched silicone and weld rod available.
  • Excellent chemical resistance.
  • A flexible solution with the option of bigger units.
  • Varied and versatile healthcare IPS layouts to suit your brief.
  • A HNB 00-10 Part C compliant system.
  • Options for larger access hatches for easier ongoing maintenance.
  • A fully compliant, tested and proven solution.
  • A choice of 34 on-trend finishes, ideal for healthcare environments.
Venesta Washrooms Vepps Hygen Pvc Healthcare2

The complete range

Explore the options available when specifying our tried and tested, industry-leading Vepps Healthcare systems for your projects.

Venesta Washrooms Vepps Hygen Pvc Healthcare

Vepps Hygen PVC

venesta-washrooms-healthcare-ips-vepps-hygen-plus7

Vepps Hygen Plus

venesta-washrooms-vepps-hygen-healthcare

Vepps Hygen

Venesta Washrooms Healthcare Ips Vepps Recessed1

Vepps Recessed Unit

Venesta Washrooms Healthcare Ips Vepps Boxedout1

Vepps Boxed-Out Unit

venesta-washrooms-toilet-cubicles-ips-vepps-wall-panel

Vepps Wall System

Why choose Venesta for healthcare IPS?

Venesta stands as the top choice for healthcare IPS systems, offering compliance, functionality and style in equal measure. Renowned for quality and innovation, our Vepps Healthcare range combines durability with sleek, modern designs, enhancing the aesthetic of any healthcare setting. Not only do we prioritise hygiene and compliance within the range, but we take great pride in ensuring customer satisfaction. Choose Venesta for healthcare IPS solutions that blend compliance with excellence, enhancing and improving patient and staff safety.

Learn more about Venesta on our about us page

Product specifications

  • Maximum height

    Up to maximum box height of 3000mm to suit a fixed ceiling.

    Or up to 2940mm to suit a suspended ceiling.

    Width

    700mm to 800mm depending on depth/arrangement.

    Depth

    150mm and 225mm depth as standard.

    Ceiling and floor

    Ceiling: Suspended and solid options.

    Floor: Optional 100mm high skirting available to allow flush installation of vinyl flooring, upon request.

  • PVC

    Vepps Hygen PVC boasts a closed-cell PVC foam substrate bu8lt for long-term performance in wet healthcare environments, guaranteed to be waterproof for the lifecycle of the installed product. Boards are lighter than traditional alternatives and are fully recyclable. Panels have a total thickness of 17.5mm, with a core thickness of 15mm and finished in 2.5mm cladding.

  • Panels

    Joint free 15mm closed cell PVC board faced with 2.5mm PVC sheet with postformed corners and 2 hinged recessed access panels, complete with locks and seal.

    Colour finish

    PVC: Available in 35 on-trend finishes.

    Access

    Rebated or overlapping door.

    Sanitaryware

    Sanitary appliances are pre-plumbed and sealed to Vepps Hygen PVC Units, unless stated otherwise, and rigorously tested.

    Options

    Colour matched silicone and weld rod available.

  • Panel lock

    Manufactured from stainless steel with a polished finish, with master key.

    Panel seal

    Access panels incorporating a 3mm self adhesive C211 FR flame retardant neoprene sponge seal.

    Hinge

    160 degree overlay hinge secured to bespoke zinc plated steel bracket.

    Site frame

    Box unit secured using Venesta tie back system incorporating M8 zinc plated tie-back rods and supporting bracketry in zinc plated steel.

Colours & materials

With its lightweight, rigid and non-porous closed cell core and solid, dense and smooth finish, Vepps Hygen PVC units are available in 34 on-trend finishes to choose from.

  • Polyvinyl Chloride (PVC)

    Hygen PVC

    A choice of 35 colours

    This is a closed-cell PVC foam substrate built for long-term performance in wet environments. PVC is significantly lighter than traditional alternatives and is 100% waterproof with no risk of delamination. The hygienic closed cell core offers no organic and moisture growth within the product.

    Our PVC finishes are split into price brackets, with the standard group being the lowest and the premium group being the highest costs. We're pleased to offer satin and gloss finishes within each price group.

    Standard (Satin): Pure VEN433, Almond VEN435, Almond VEN435, Camel VEN436, Arctic VEN437, Eucalyptus VEN438, Seafoam VEN439, Moon VEN440, Truffle VEN441, Glacier VEN442, Vanilla VEN443
    Standard (Gloss): Linen VEN434

    Premium (Satin): Cantaloupe VEN444, Cove VEN445, Mineral VEN446, Flamingo VEN447, Pebble VEN448, Evergreen VEN449, Mintwood VEN450, Wisteria VEN451, Lagoon VEN452, Dusk VEN453, Mist VEN454, Clay VEN455, Heather VEN456, Nectarine VEN457
    Premium (Gloss): Sage VEN458, Slate VEN459, Obsidian VEN460, Pistachio VEN461, Rhubarb VEN462, Mulberry VEN463, Paprika VEN464, Terracotta VEN465, Matcha VEN466, Harbour VEN467
