Vepps Hygen Plus

A tried and tested standalone pre-plumbed assembly, with additional strength and durability, maximum design flexibility and complete compliance for all healthcare settings.

venesta-washrooms-healthcare-ips-vepps-hygen-plus7

Vepps Hygen Plus

Increased durability, strength and flexibility.

Designed with infection control in mind, Vepps Hygen Plus is an all-new rigid and stable system that is totally impervious to water and is easy to clean and maintain. With all the same benefits of our Vepp Hygen range, Hygen Plus' satin anodised aluminium corner extrusions offer additional strength to our all-new healthcare IPS solution. With Vepps Hygen Plus, you also have the option to specify bigger units with more varied and versatile healthcare IPS layouts to suit your briefs.

Hygen Plus IPS gives you the option to specify more varied and versatile layouts to suit your brief, while being able to design longer runs of healthcare IPS. What's more, Vepps Hygen Plus also offers you a robust between walls solution, again providing you with many more options at specification stage.

Its seamless design has flush-fitting hinged and lockable access doors that minimise dirt traps and make ongoing maintenance easier than ever. It's a simple, easy-click wall system with concealed aluminium wall fixing channels, galvanised steel tie back rods and zinc plated steel joggle brackets for a quick yet sturdy, long-lasting installation. Pre-plumbed with industry-leading healthcare sanitaryware, brassware and fittings, all Vepps Hygen Plus Units are rigorously tested before arriving to site, helping to speed up the installation process further.

venesta-washrooms-healthcare-ips-vepps-hygen-plus5
Satin anodised aluminium corner extrusions offer additional strength.
venesta-washrooms-healthcare-ips-vepps-hygen-plus10

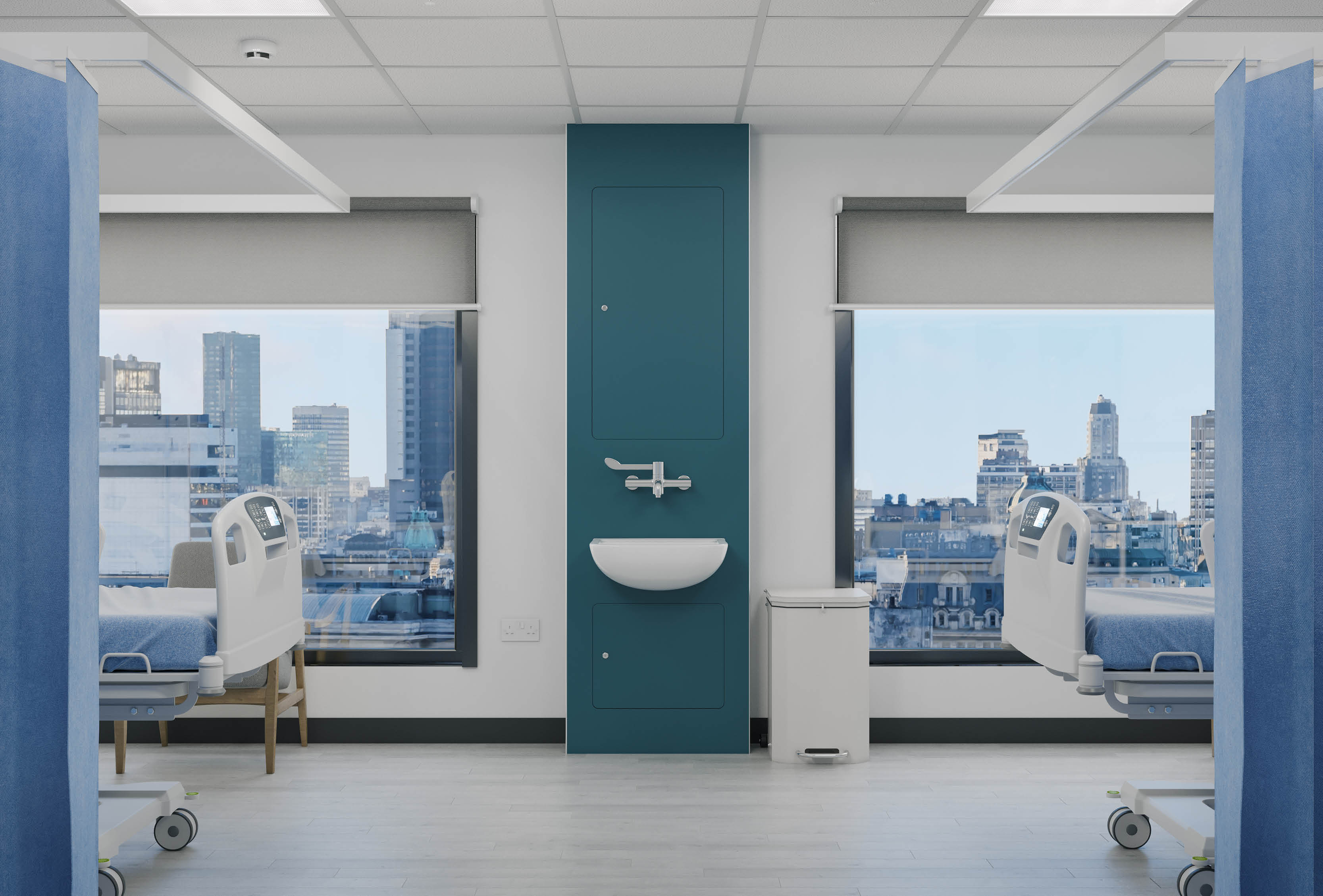

Complete design flexibility with a choice of 34 on-trend laminate finishes.
venesta-washrooms-healthcare-ips-vepps-hygen-plus9
Impervious to water, easy to clean and perfect for any healthcare environment.
venesta-washrooms-healthcare-ips-vepps-hygen-plus1
Various sized access panels make ongoing maintenance easier than ever.

Vepps Hygen Plus features & benefits

  • Satin anodised aluminium corner extrusions offer additional strength.
  • A more flexible solution with the option of bigger units.
  • Varied and versatile healthcare IPS layouts to suit your brief.
  • Option of longer runs of healthcare IPS.
  • Vepps Hygen Plus offers a between walls solution.
  • A HNB 00-10 Part C compliant system.
  • Options for larger access hatches for easy ongoing maintenance.
  • A fully compliant, tested and proven solution.
  • An ultra strong aluminium frame.
  • Quick and easy install times with our ingenious click-fix mechanism.
  • Maintains integrity of rear fire walls and acoustic rated walls.
  • Optional plinth to allow vinyl flooring to be received.
  • A choice of 34 on-trend laminate finishes, including wood effects.
venesta-washrooms-healthcare-ips-vepps-hygen-plus10

The complete range

Explore the options available when specifying our tried and tested, industry-leading Vepps Healthcare systems for your projects.

venesta-washrooms-healthcare-ips-vepps-hygen-plus7

Vepps Hygen Plus

Venesta Washrooms Healthcare Ips Vepps Hygen Unit

Vepps Hygen

Venesta Washrooms Healthcare Ips Vepps Recessed1

Vepps Recessed Unit

Venesta Washrooms Healthcare Ips Vepps Boxedout1

Vepps Boxed-Out Unit

Why choose Venesta for healthcare IPS?

Venesta stands as the top choice for healthcare IPS systems, offering compliance, functionality and style in equal measure. Renowned for quality and innovation, our Vepps Healthcare range combines durability with sleek, modern designs, enhancing the aesthetic of any healthcare setting. Not only do we prioritise hygiene and compliance within the range, but we take great pride in ensuring customer satisfaction. Choose Venesta for healthcare IPS solutions that blend compliance with excellence, enhancing and improving patient and staff safety.

Learn more about Venesta on our about us page

Product specifications

  • Minimum height

    Hygen Plus full height: 2315mm.

    Hygen Plus shelf height: 1450mm.

    Hygen Plus full height multi-panel: 2315mm.

    Hygen Plus shelf height multi-panel: 1450mm.

    Maximum height

    Hygen Plus full height: 2750mm.

    Hygen Plus shelf height: 1800mm.

    Hygen Plus full height multi-panel: 2750mm.

    Hygen Plus shelf height multi-panel: 1800mm.

    Width

    Hygen Plus full height: 700mm or 750mm* as standard.

    Hygen Plus shelf height: 700mm or 750mm* as standard.

    Hygen Plus full height multi-panel: Available between 800mm - 1550mm widths (50mm increments).

    Hygen Plus shelf height multi-panel: Available between 800mm - 1550mm widths (50mm increments).

    *Other widths available on request.

    Depth

    Hygen Plus full height: 150mm or 225mm depth as standard.

    Hygen Plus shelf height: 150mm or 225mm depth as standard.

    Hygen Plus full height multi-panel: 150mm or 225mm depth as standard.

    Hygen Plus shelf height multi-panel: 150mm or 225mm depth as standard.

    Ceiling and floor

    Ceiling: Suspended and solid options.

    Floor: Optional 100mm high skirting available to allow flush installation of vinyl flooring.

  • SGL

    Solid Grade Laminate (SGL) is extremely resistant to impact and all surfaces are impervious to water. Panels are manufactured from one piece of 13mm SGL with satin anodised aluminium corner extrusion edges.

  • Panels

    13mm compact laminate with satin anodised aluminium corner extrusion edges, hinged recessed access panels complete with locks and seal. Seamless joints where possible.

    Colour finish

    SGL: Available in 34 laminate finishes.

    Sanitaryware

    Sanitary appliances are pre-fixed and sealed to Vepps Hygen Plus Units, unless stated otherwise, and rigorously tested.

  • Panel lock

    Manufactured from stainless steel with a polished finish, with master key.

    Panel seal

    Access panels incorporating a 3mm self adhesive C211 FR flame retardant neoprene sponge seal.

    Hinge

    160° overlay hinge secured to bespoke zinc plated steel bracket.

    Site frame

    Box unit secured using Venesta tie back system incorporating M8 zinc plated tie-back rods and supporting bracketry in zinc plated steel.

Colours & materials

With its Solid Grade Laminate (SGL) core board, Vepps Hygen Plus units are available in all 34 of our on-trend laminate finishes.

  • Laminate

    Laminate (MFC/HPL/SGL)

    MFC

    Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.

    HPL

    Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.

    SGL

    If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.
