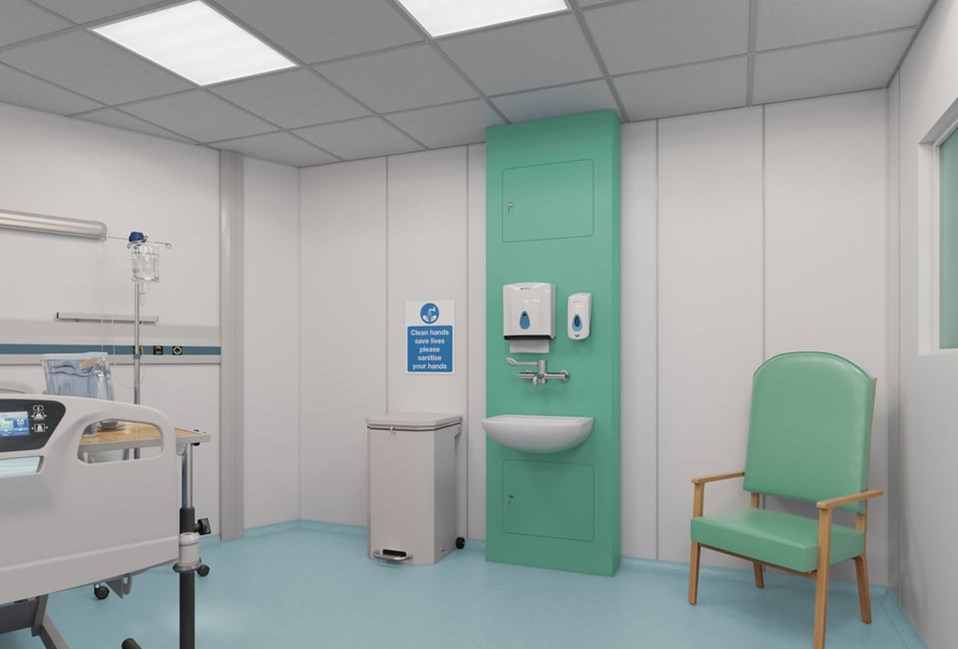

Vepps Hygen

A standalone pre-plumbed basin assembly, formed from a single piece of solid grade laminate.

venesta-washrooms-vepps-hygen-healthcare

HBN 00-10 Part C Compliant.

Designed with infection control in mind, Vepps Hygen is a rigid and stable system, impervious to water, easy to clean and maintain. It's seamless design has flush fitting hinged and lockable access doors that minimise dirt traps.

It's a simple, easy-click wall system with concealed aluminium wall fixing channels, galvanised steel tie back rods and zinc plated steel joggle brackets for a quick yet sturdy, long-lasting installation.

Features

  • Ingenious, easy install click-fix mechanism.
  • Over 120 variants to choose from.
  • Ultra strong aluminium frame.
  • Maintains integrity of rear fire walls and acoustic rated walls.
  • Fully compliant, tested and proven solution.
  • Optional plinth to allow vinyl flooring to be received.

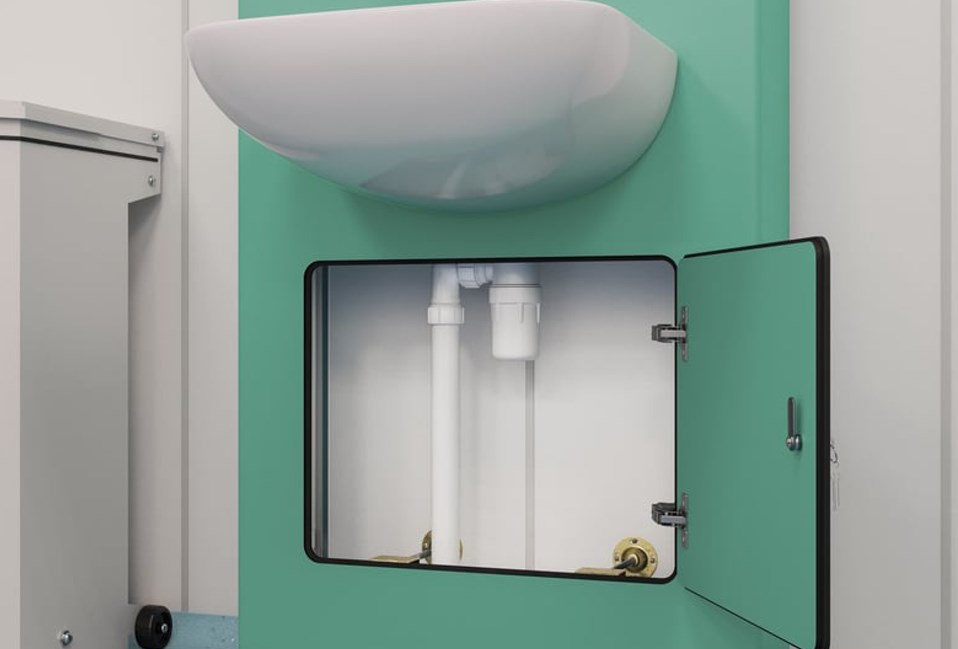

  • Wash hand basin assemblies have an option for a larger access hatch.
  • Choice of 34 laminate finishes.
venesta-washrooms-vepps-hygen-healthcare
Complete design flexibility, with a choice of 34 on-trend laminates to specify.
venesta-washrooms-vepps-hygen-healthcare-door-access-door1

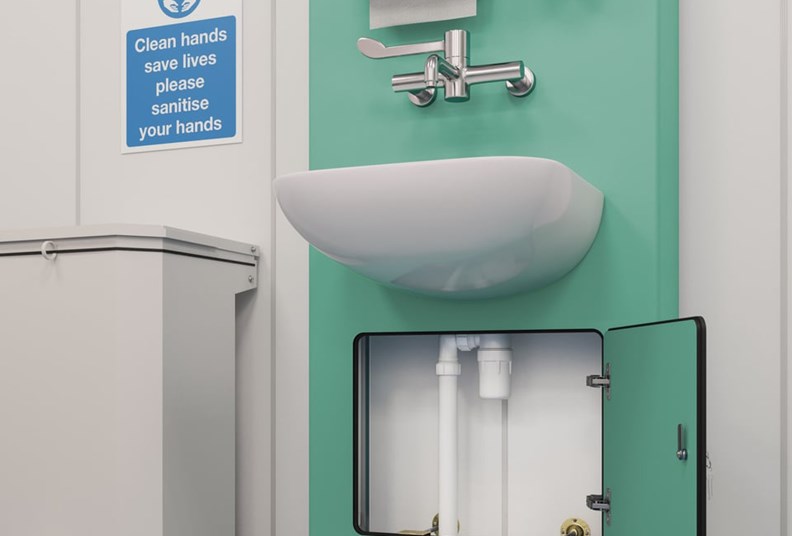

All sanitaryware is pre-plumbed and vigorously tested before being delivered.
venesta-washrooms-vepps-hygen-healthcare-door-closed1

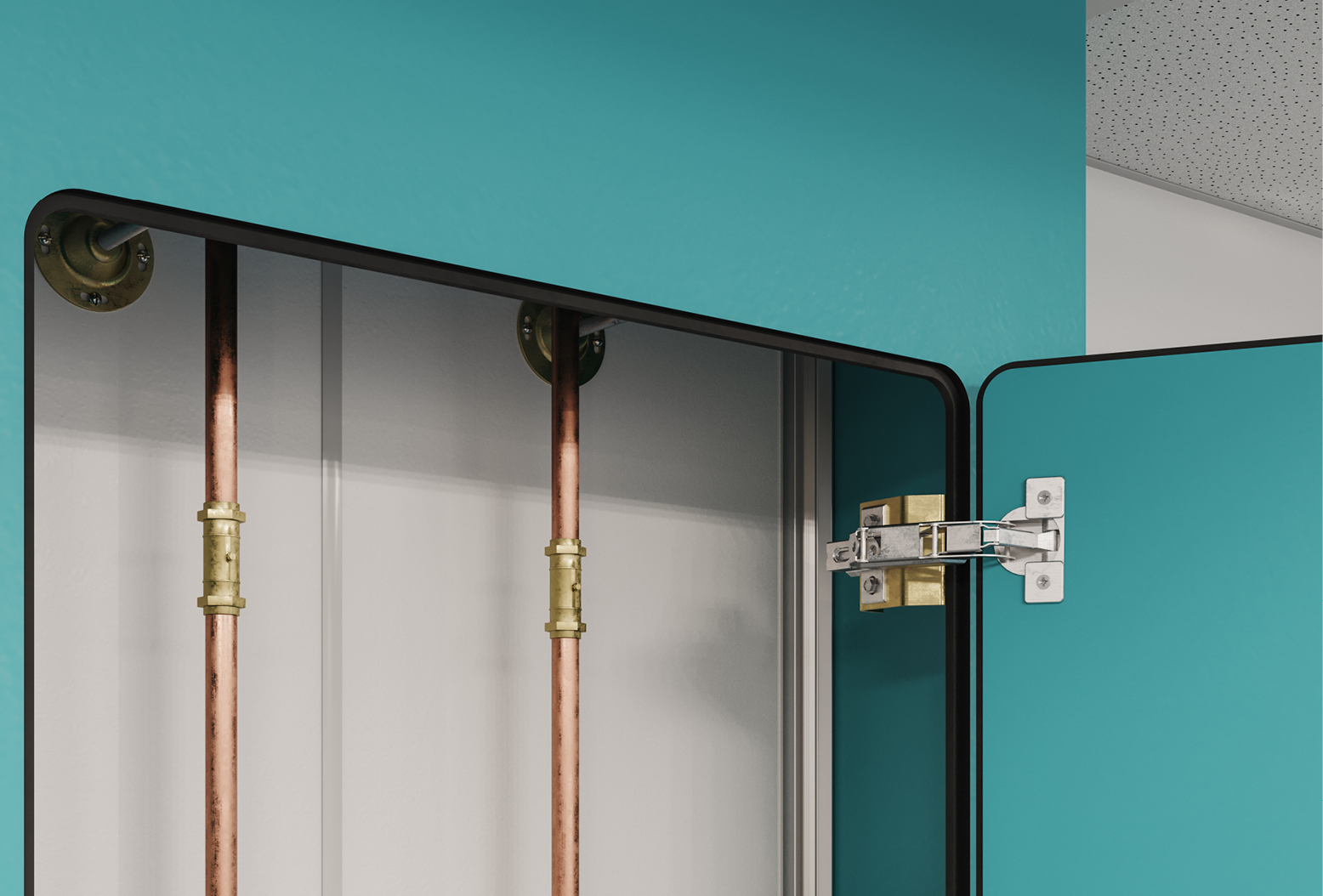

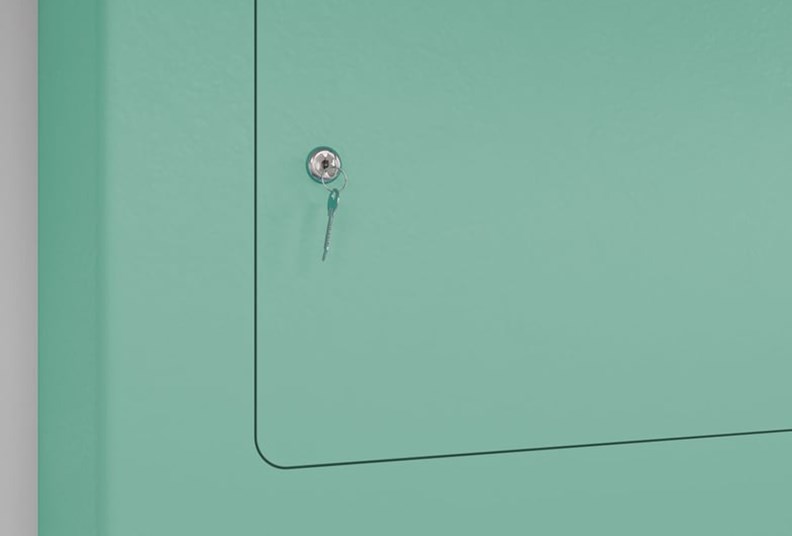

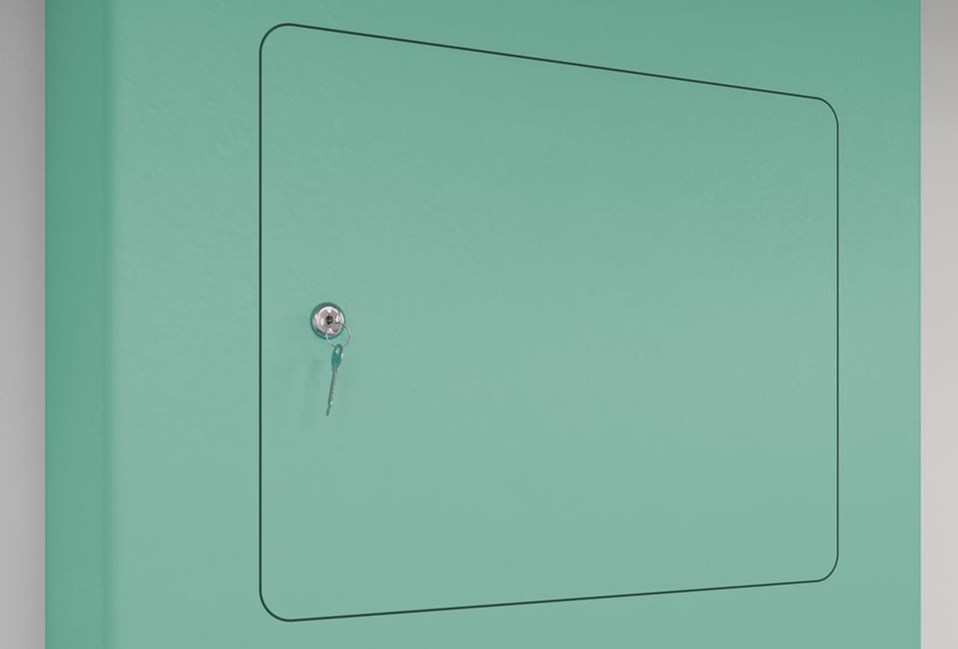

Two lockable access panels make ongoing maintenance easier than ever.
venesta-washrooms-vepps-hygen-healthcare-door-open2

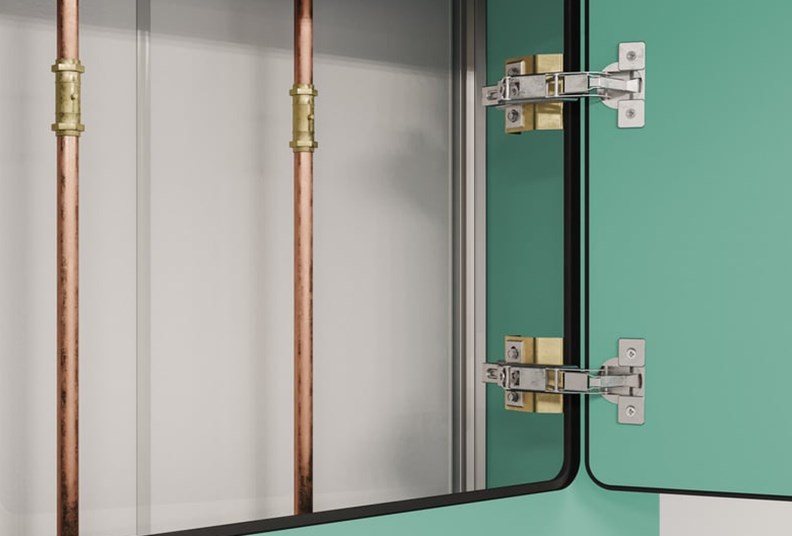

Various sized access panels make ongoing maintenance easier than ever.

Product specifications

  • Height

    Full height: up to maximum box height 3040mm to suit a fixed ceiling or 2940mm to suit a suspended ceiling.

    Shelf height: up to maximum 1800mm, minimum 1450mm.

    Width

    Single units: Available either 700mm or 750mm wide.

    Multi-panel units: Available between 700mm - 1050mm wide (50mm Increments). Larger units achieved with Central Joint.

    Depth

    Available in 150mm and 225mm depth as standard.

    Ceiling and floor

    Ceiling: Suspended and solid options.

    Floor: Optional 100mm high skirting available to allow flush installation of vinyl flooring, upon request.

  • SGL

    Solid Grade Laminate (SGL) is extremely resistant to impact and all surfaces are impervious to water. Panels are manufactured from one piece of 10mm SGL with satin anodised aluminium corner extrusion edges.

  • Panel

    High density SGL with decorative surfaces to both sides.

    Colour finish

    From PF SGL Colour chart.

    Pre-plumbing

    Sanitary appliances as specified in section N13, pre-fixed and sealed to HBN Hygen Unit, unless stated otherwise, all factory assembled.

    Panel thickness

    10mm nominal.

    Optional sloping lid top

    30° sloped as standard.

  • Panel lock

    Budget lock with master key.

    Panel seal

    Access panels incorporating a 3mm self adhesive C211 FR neoprene sponge seal.

    Hinge

    160° overlay hinge secured to bespoke zinc plated steel bracket.

    Site frame

    Box unit secured using Venesta tie back system incorporating M8 zinc plated tie-back rods and supporting bracketry in zinc plated steel.

    Regulation

    Complies with HTM 64 & HBN 00-10 Part C.

    Box framing

    Joint free 10mm compact laminate with postformed corners with 2 hinged recessed access panels, complete with locks and seals.

Colours & materials

With its Solid Grade Laminate (SGL) core board, Vepps Hygen units are available in 10 laminate finishes.

Colour and material library

Cleaner installation.

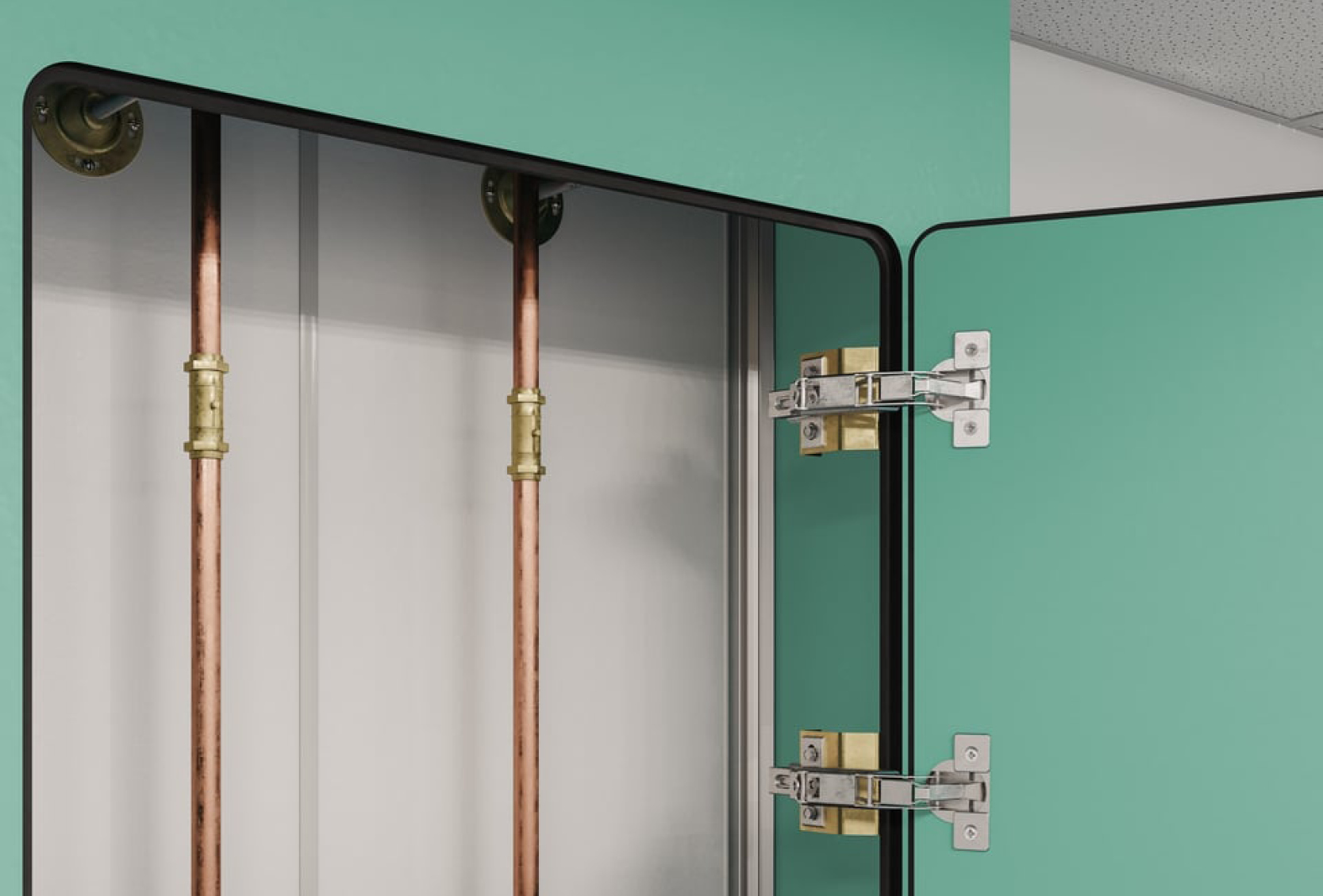

A one-stop solution, made-to-measure pre-plumbed system. A metal framed, bespoke system that comes complete with factory fitted and tested sanitaryware. And with fewer tradesmen on site, the Vepps Hygen is quicker, cleaner and more cost-efficient to install. Ideal for a healthcare environment with enhanced infection control protocol.

venesta-washrooms-vepps-hygen-healthcare-door-open1
