Frameduct

Our ready-to-install, metal-framed, non-plumbed washroom panelling system.

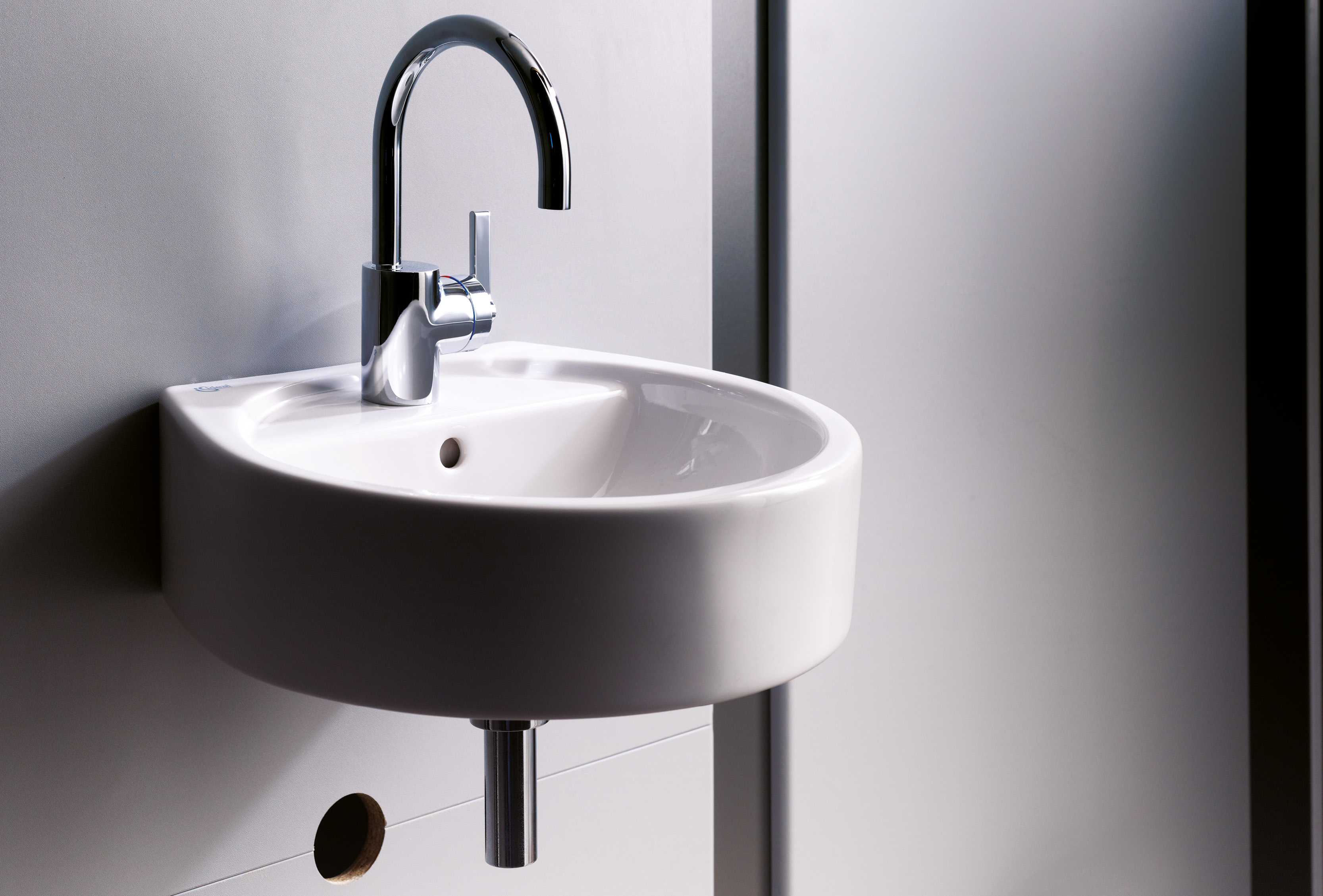

Venesta Washrooms Frameduct1

Made-to-measure, ultra strong.

If you're looking for a sturdy, metal-framed panelling system but want the choice of specifying your own sanitaryware, then Frameduct is the ideal solution.

Metal frames and panels are factory-made to fit your washroom layouts. Frameduct has some cutting edge features, including a unique 90° linear-bearing hinged panel, with optional security lock to allow secure access to duct space.

Features

  • Ingenious, easy install click-fix mechanism.
  • Ultra strong aluminium frame.
  • Unique 90° linear-bearing hinges.
  • Lockable duct panel option.
  • Non-plumbed system - flexibility to choose your own sanitaryware.
  • Suitable for all board types in wet and dry environments.
venesta-washrooms-toilet-cubicles-fusion-frameduct-panelling-urinals-vanity-unity-basin-sink-selby-high-school2
Frameduct washroom panelling is compatible with WCs, urinals, basins and showers for maximum flexibility.

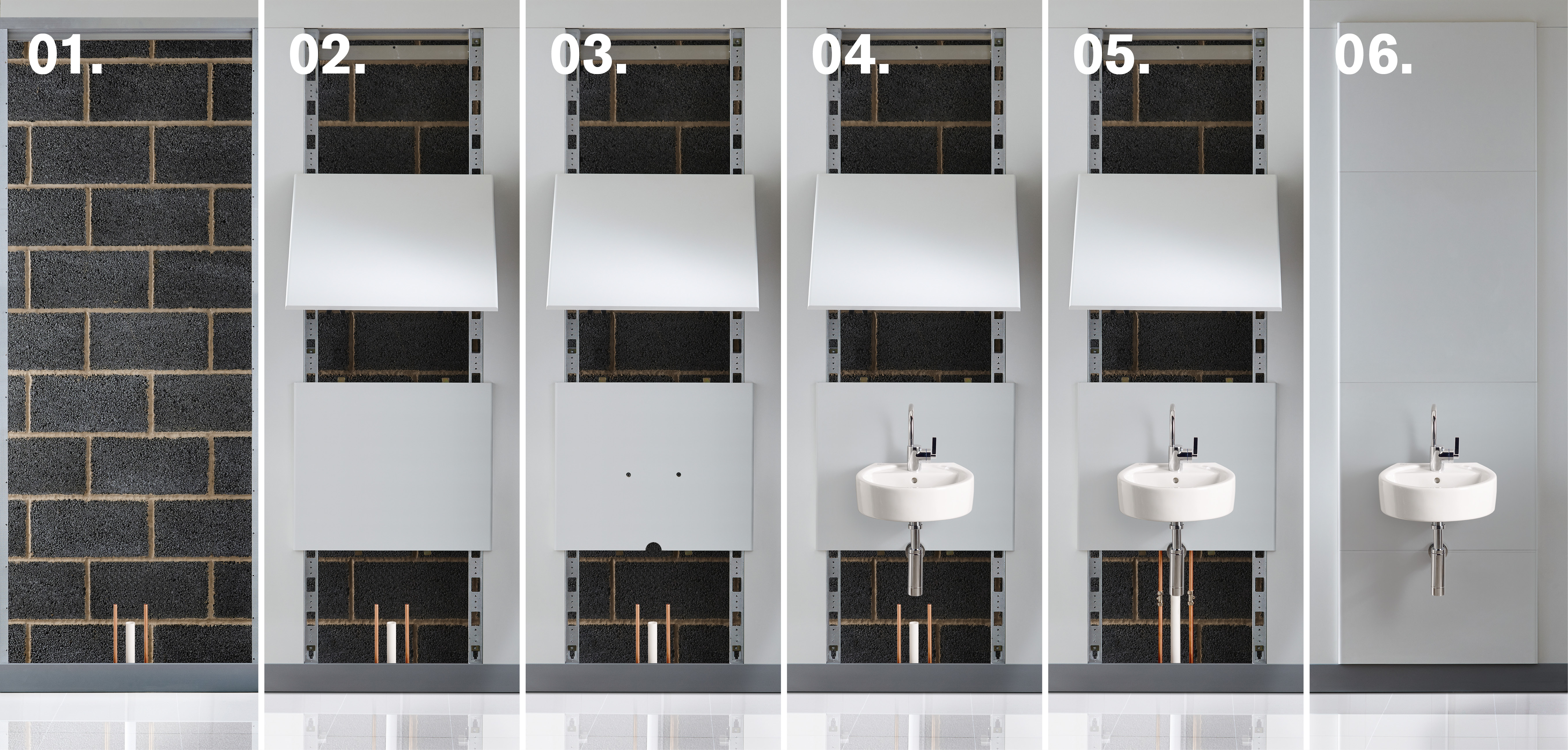

01. Once the site has been prepared, fix the aluminium docking frame to the wall, ceiling and floor (20 minutes).

02. Click-fix the first Frameduct unit onto the frame and slide into position. Open the mid panel to a fully hinged position. Attach a vertical flashgap to the frame on either side of the unit, screw-fixing to the frame from the face. Fix tie back to the wall. Repeat until all units are in place (30 minutes).

03. Drill or cut out for sanitaryware (10 minutes).

04. Mount sanitaryware and brassware (20 minutes).

05. Once all the units are in position, connect the plumbing and services and apply silicone sealant to sanitaryware (10 minutes).

06. Simply close the hinged panel and attached the top and bottom panels of the unit (5 minutes).

The comparisons given between Vepps, Frameduct and Rapiduct are a guide and are designed to help you choose the right product for your project.
Venesta Washrooms Frameduct Installation

Colours & materials

Select from a range of colours and materials, and order samples.

  • Laminate

    Laminate (MFC/HPL/SGL)

    MFC

    Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 18mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.

    HPL

    Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 18mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.

    SGL

    If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.

  • ColourCoat

    Colour Coat

    ColourCoat is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat have a gloss value of 20%.

    Edges are sprayed with a coat of primer and finished with 20% high gloss pigmented lacquer.

    Note: for V3 ColourCoat products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

  • ColourCoat High Gloss

    Colour Coat High Gloss

    ColourCoat High Gloss is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat High Gloss have a gloss value of 80%.

    Edges are sprayed with a coat of primer and finished with 80% high gloss pigmented lacquer.

    Note: for V3 ColourCoat High Gloss products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

  • Veneer

    Real Wood Veneer

    Our sleek Alpi real wood veneer washroom finishes have been carefully selected to bring warmth, vitality and luxury to your designs. Hardwearing, sustainable and great to look at, our real wood veneers are available across a range of our washroom systems.
