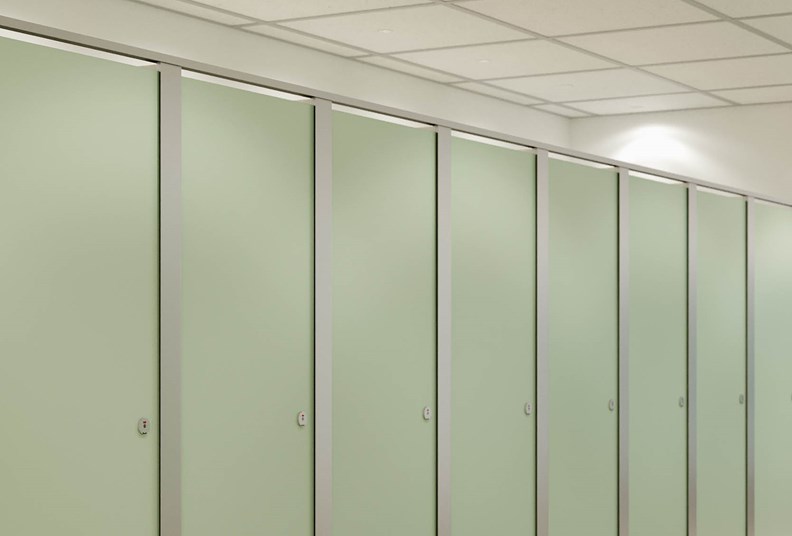

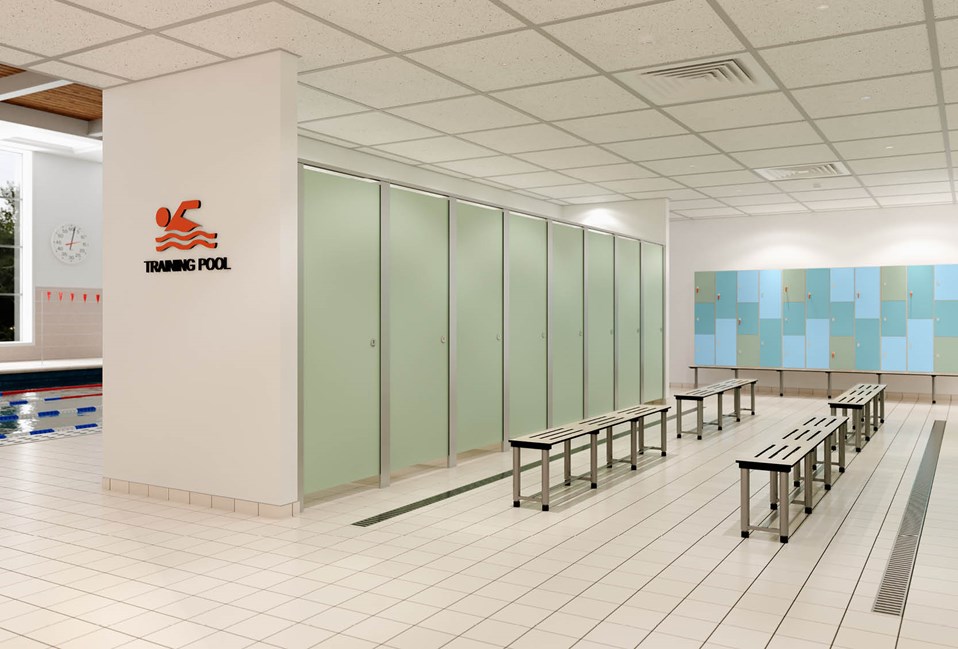

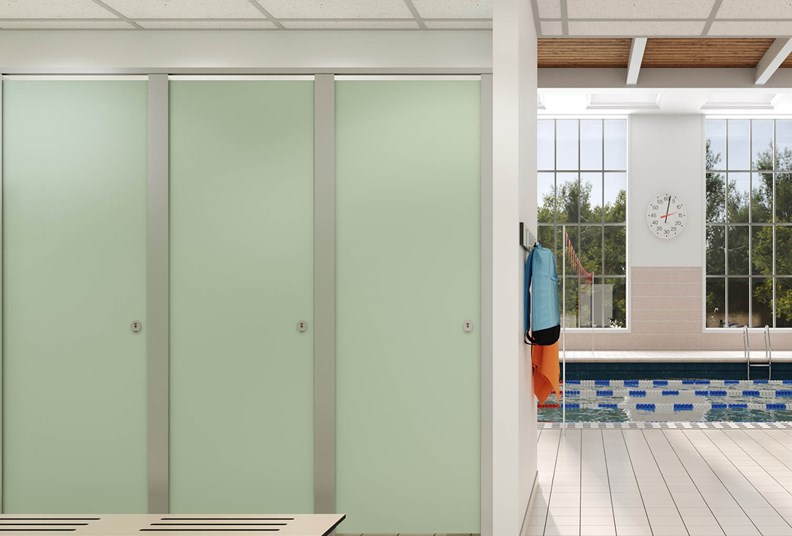

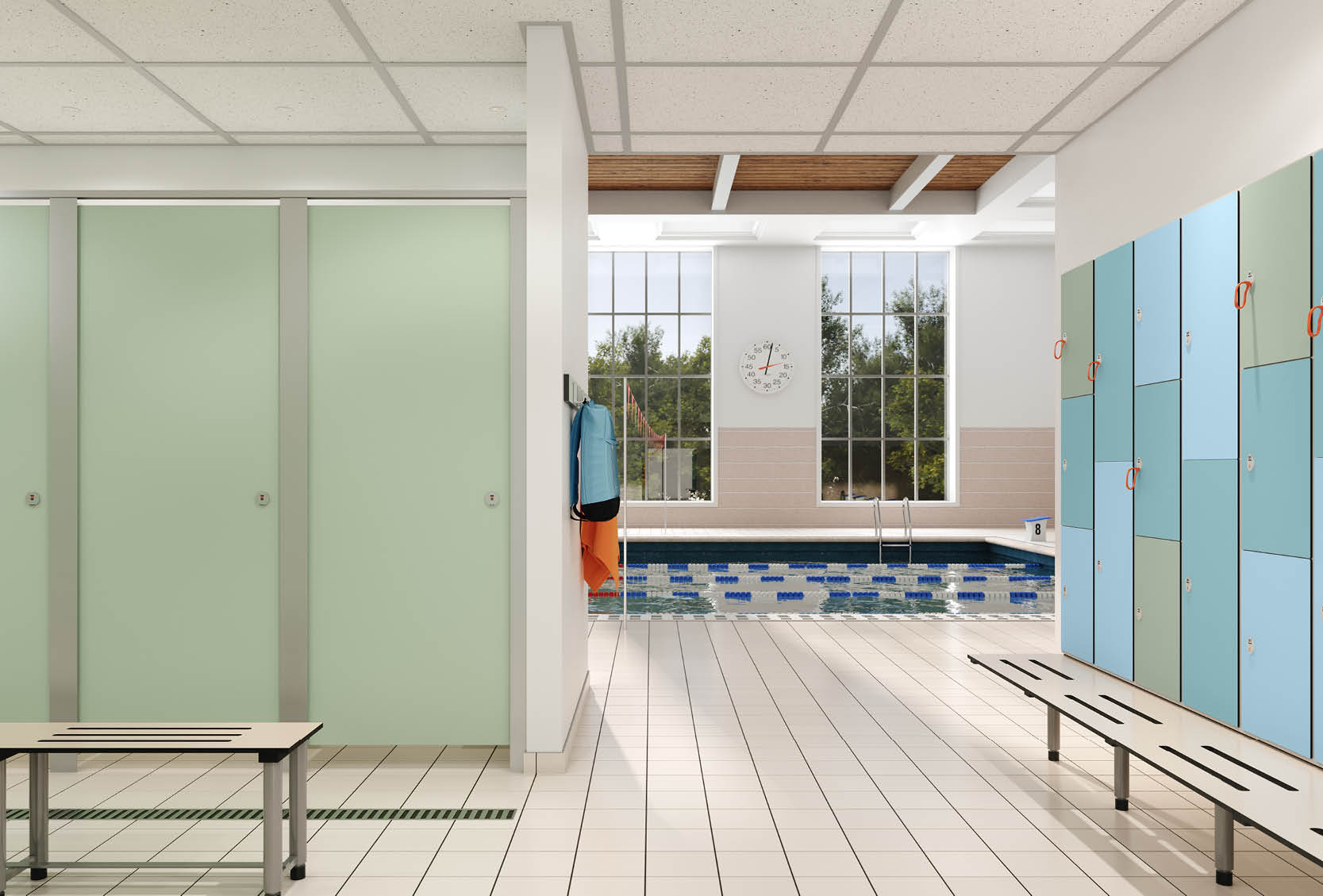

Fusion cubicles are supremely versatile, yet wonderfully simple. Minimalistic, discreet slimline fittings and pilasters that fit to the floor, make Fusion washroom cubicles a high quality yet economical solution. There's also a full height option to provide more privacy in busy washroom environments.
With three material options and a palette of 34 colours, Fusion gives you complete design flexibility for both wet and dry environments.
Full height option available, 150mm ceiling clearance required.
MFC & HPL: 2035mm.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness. Edges lipped with ABS.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL and SGL: 34 colours.
Cubicle hardware: Satin anodised aluminium.
MFC & HPL: Matching ABS lipping.
SGL: Polished black radiused edge.

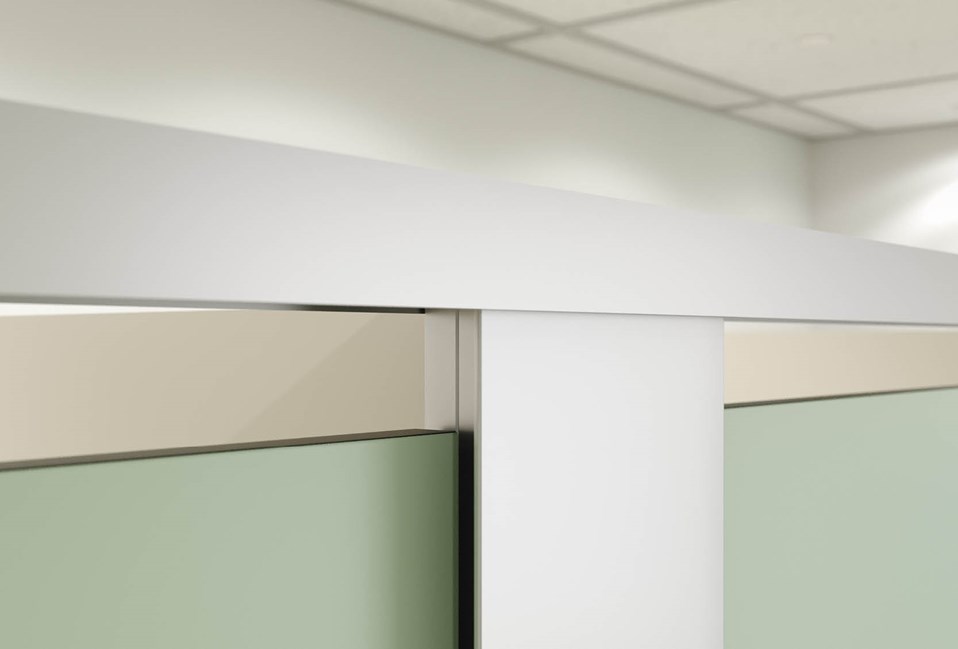

Satin anodised aluminium headrail with stainless steel end cap.
Rise and fall aluminium hinge with adjustable cams for door to fall closed, open or ajar. Lift off hinge to allow emergency access.
Partitions fixed to walls using satin anodised aluminium channel.
Satin anodised aluminium flip indicator bolt with emergency release.
No pedestal required as the pilasters extend to floor level and are fixed to floor mounting blocks.
Coat hooks and toilet roll holders available.
|File name||File type|
|Fusion MFC & HPL 2BTW||CAD Blocks|
|Fusion SGL 2BTW||CAD Blocks|
|Fusion MFC & HPL 2WA||CAD Blocks|
|Fusion SGL 2WA||CAD Blocks|
