Sahara Glass

Meeting the needs of the most exclusive washrooms environments.

venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass

Opulent commercial washroom design.

Unique to the Sahara toilet cubicle range, the doors boast our innovative floating pivot hinge system. Synonymous with opulent design, the pivot hinge creates a smooth, elegant door movement, which means doors are easy to open and self-close, helping to showcase the flush design of the cubicle fronts.

With a slimline profile, flush fronted design and all the same sleek hardware features as Sahara, Sahara Glass presents an undisputable premium look. The rebated, flush fronted doors create a modern, minimal design while the lustrous stainless steel pedestals are set-back on partitions so the toilet cubicles appear to float.

For a modern and minimal design, that doesn't compromise on durability, Sahara Glass' doors, pilasters and partitions are clad in black or white double back painted 4mm toughened safety glass.

Features

  • V3 - Premium toilet cubicles.
  • Hardwearing and scratch resistant glass surface.
  • Hidden soft self-closing pivot hinge system.
  • Flush fronted and floating appearance.
  • Robust satin anodised aluminium pilasters clad in complementing glass.
  • All-new mortice lock with emergency release feature.
  • Choose from a timeless monochrome colour palette.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass-indicator-bolt

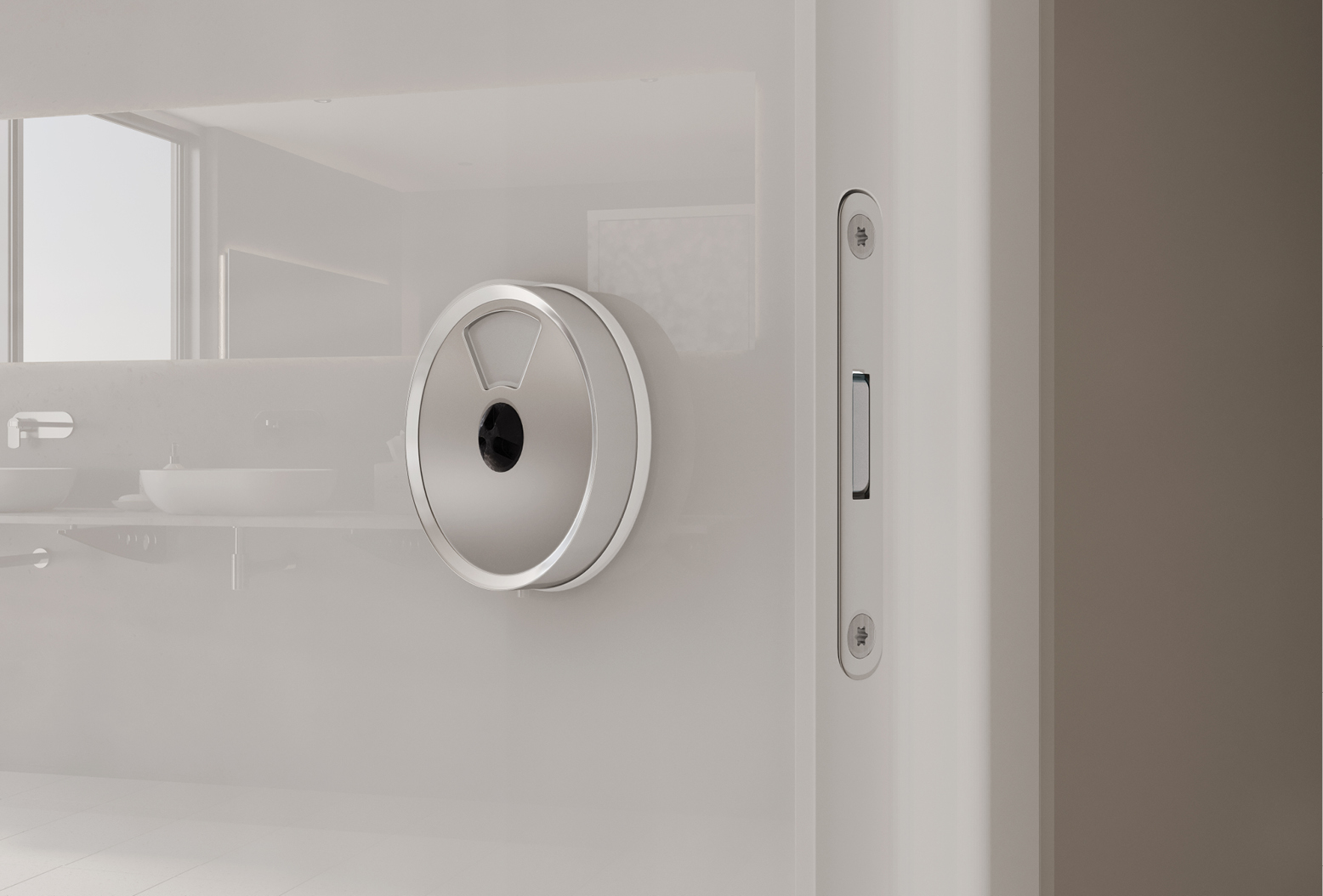

Emergency release indicator bolt with mortice lock.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass-floating
Sahara Glass cubicles boast a minimal design.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass-pivot-hinge-pedestal

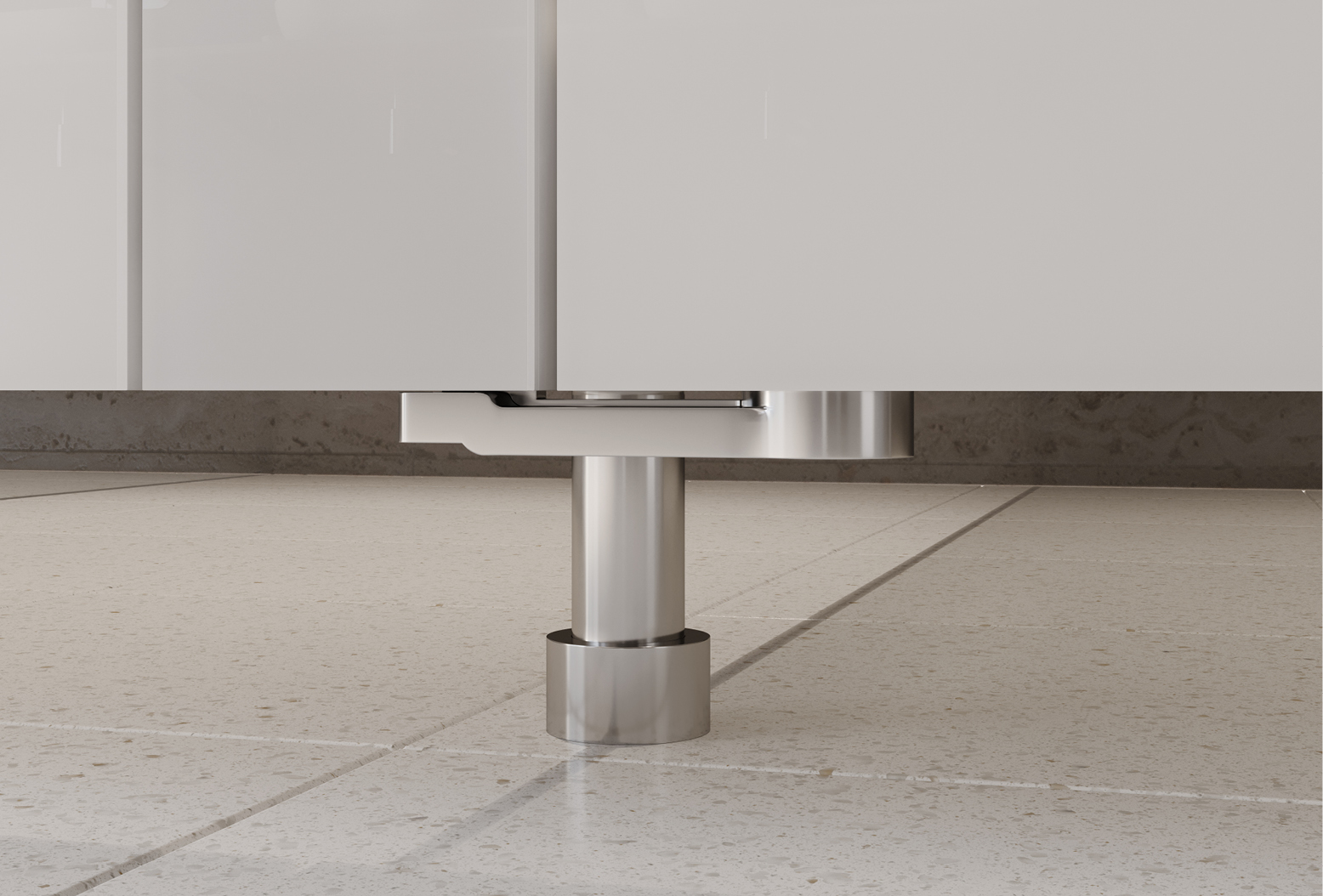

Hidden self-closing pivot hinge system for smooth, elegant door movement.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass-black

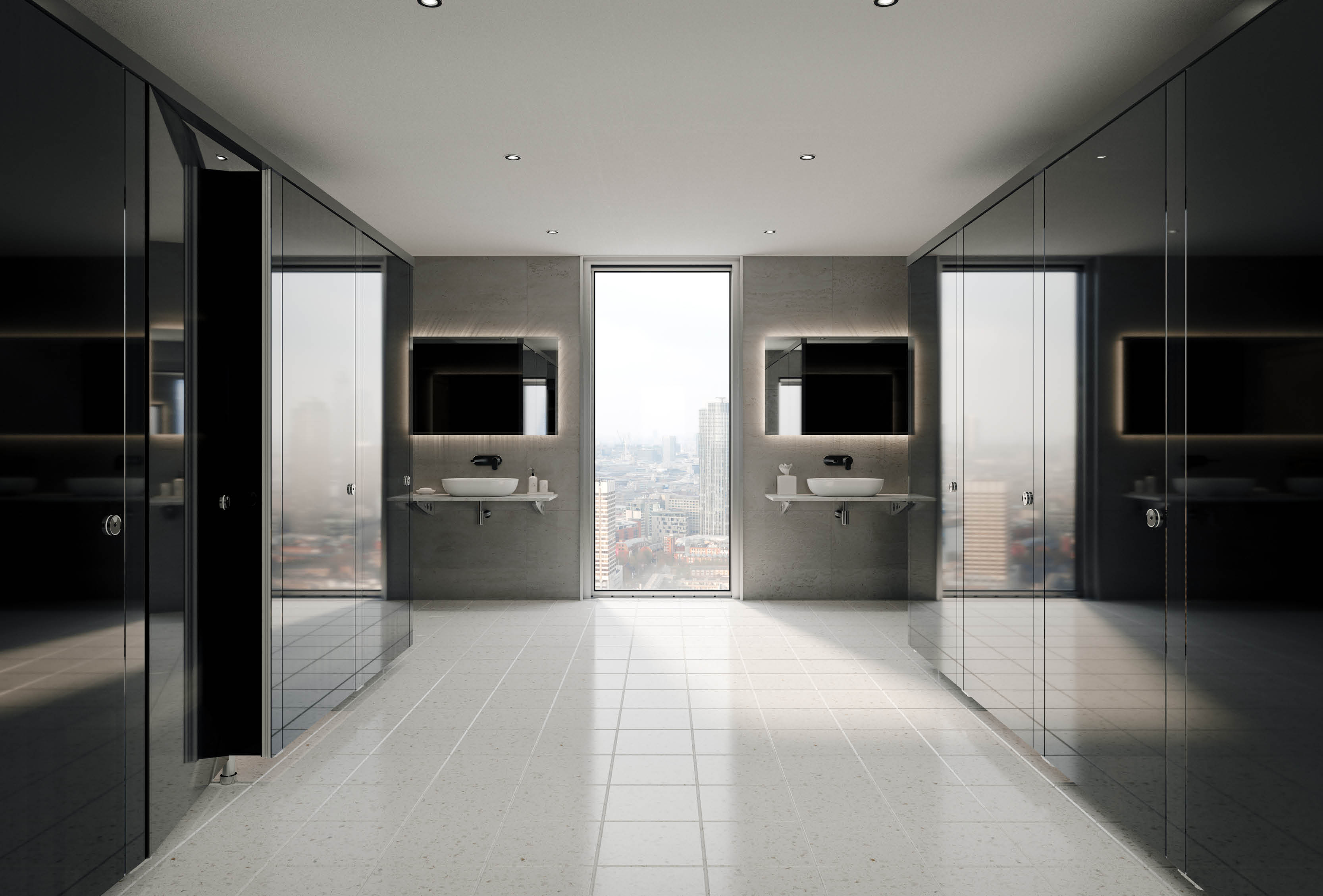

Specify Sahara Glass in timeless black or white glass.

Take a closer look...

Sahara Glass features glass doors, panels and pilasters in timeless black or white, for a seamless all glass cubicle design.

Find out more
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass-pivot-hinge-pedestal

The complete range...

Explore the options available when specifying our Sahara range.

venesta-washrooms-premium-luxury-toilet-cubicle-sahara-veneer-pivot-hinge-pedestal

Sahara

venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass-indicator-bolt

Sahara Glass

Product specifications

  • Overall height

    2139mm.

    Maximum height

    2909mm.

    Maximum depth

    2086mm.

    Floor clearance

    100mm as standard.

    Also a choice of 50mm or 150mm.

    Minimum ceiling clearance

    20mm.

  • Glass

    4mm toughened double back painted safety glass available in timeless black or white.

    Coreboard

    High performance Medium Density 720kg/m³ grade Fibreboard (MDF) - 660kg/m³.

    Doors are 44mm nominal thickness high performance Medium Density Fibreboard (MDF) clad with double back painted safety glass. Partitions are 35mm nominal thickness clad with double back painted safety glass.

  • Panels and doors

    High performance Medium Density Fibreboard core clad in 4mm toughened double back painted safety glass.

    Colour finish

    Glass: Black or white.*

    Core: Noir or Porcelain.

    Cubicle hardware: Satin anodised aluminium, stainless steel and powder coated aluminium.

    *Other colours available upon request.

    Edge treatment

    Glass: Polished.

    Core: Lipped with 0.5mm matching ABS.

    Headrail

    40mm slimline powder coated aluminium in black or white with matching end cap.

    Pilasters

    High strength, slimline extruded satin anodised aluminium pilasters clad in glass, specially designed to conceal fixings.

  • Indicator bolt

    Stainless steel indicator bolt with slimline mortice lock and unique emergency release function.

    Hinge

    Stainless steel soft self-closing pilaster mounted pivot hinges, supplied as an assembly.

    Pedestal

    Stainless steel 100mm height adjustable (+10mm) as standard. Also a choice of 50mm or 150mm height pedestals.

    Fixings

    Partition to wall: Satin anodised aluminium T-section.

    Pilaster to partition: Satin anodised aluminium T-section.

    Pilaster to wall: Satin anodised aluminium channel and Z-clip.

  • Accessories

    Coat hooks and toilet roll holders available.

Colours & materials

Select timeless white or black glass, and order samples.

Colour and material library

Sahara Glass goes well with…

venesta-washrooms-ips-vepps-thumbnail

Vepps IPS panelling

venesta-washrooms-vanity-units-solid-surface-thumbnail

Solid Surface vanity units

venesta-washrooms-vanity-units-granite-thumbnail

Granite vanity units

venesta-washrooms-quartz-vanity-unit-nougat-q4

Quartz vanity units

View all products
