Sahara

A new premium toilet cubicle range inspired by bold minimalism.

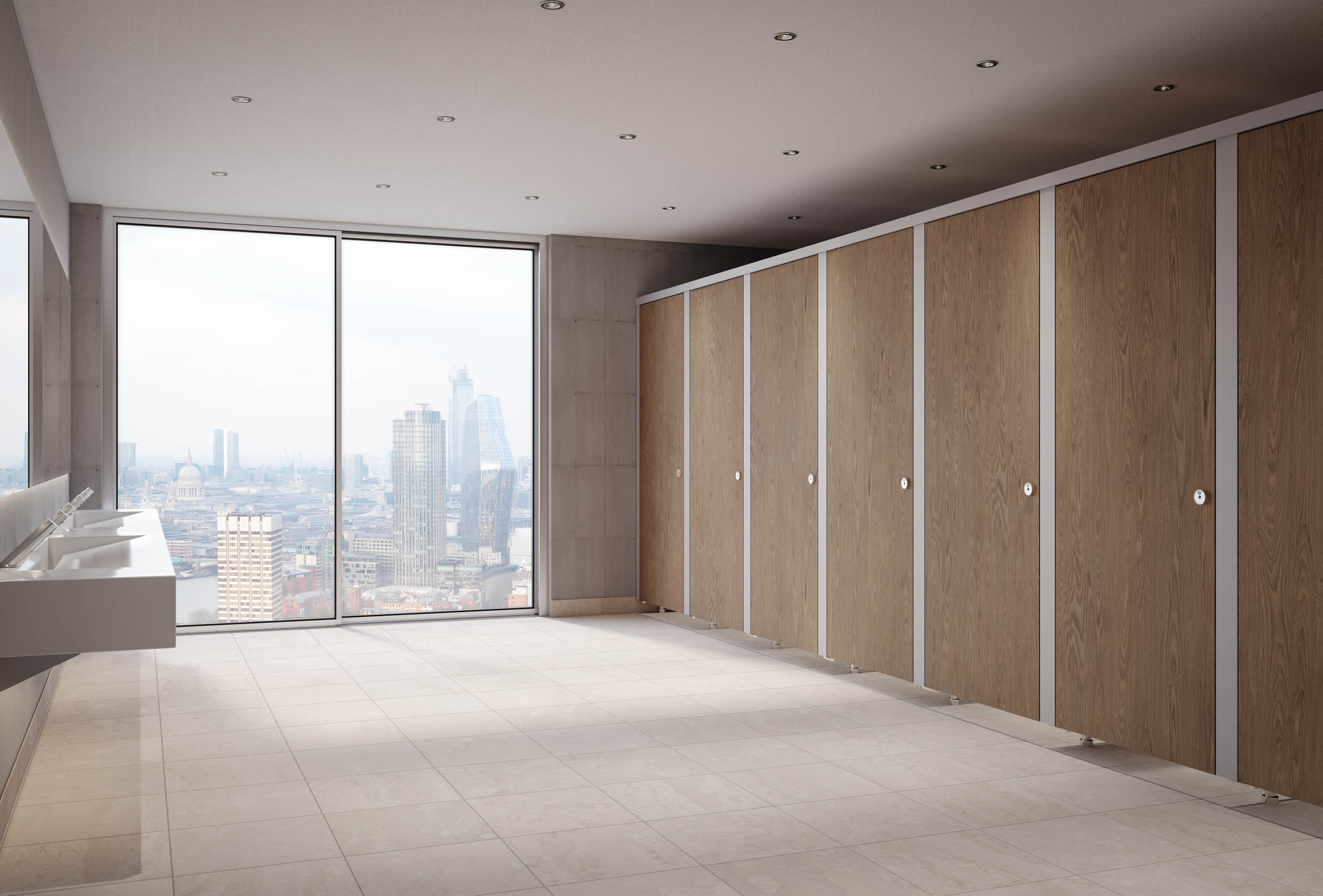

venesta-washrooms-premium-toilet-cubicles-sahara-veneer

Sophisticated commercial washroom design.

Unique to the Sahara range, the toilet cubicle doors boast our innovative floating pivot hinge system. Synonymous with opulent design, the pivot hinge creates a smooth, elegant door movement, which is easy to open and is self-closing, to showcase the cubicle's continuous, flush fronted design.

Inspired by bold minimalism, our newest premium toilet cubicle range features rebate edged flush fronted doors, while sleek stainless steel pedestals set-back on partitions give Sahara its idyllic floating appearance. Featuring an all-new mortice lock indicator bolt, Sahara toilet cubicles boast our most secure emergency release function to date.

Our latest V3 toilet cubicle range is available in 4 well rounded materials, all suitable for dry commercial washroom environments, giving you endless design possibilities.

Features

  • V3 - Premium toilet cubicles.
  • Hidden soft self-closing pivot hinge system.
  • Flush fronted rebate edged doors.
  • Set back pedestals give Sahara its floating appearance.
  • Robust satin anodised aluminium pilasters and headrail.
  • Bespoke cubicles available in a wide range of premium finishes.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-veneer-pivot-hinge-pedestal
A premium commercial washroom system with a hidden soft self-closing pivot hinge system.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-veneer-indicator-bolt
Emergency release indicator bolt with mortice lock.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-colourcoat
Sahara toilet cubicles available in a range of luxurious finishes.
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-colourcoat-headrail
Robust satin anodised aluminium pilasters and headrails.

Take a closer look...

Available in 4 different materials, this video showcases Sahara toilet cubicles in our sleek Dark Grey (RAL7026) ColourCoat and rich American Black Walnut crown cut Veneer finishes.

Find out more
venesta-washrooms-premium-luxury-toilet-cubicle-sahara-colourcoat

The complete range...

Explore the options available when specifying our Sahara range.

venesta-washrooms-premium-luxury-toilet-cubicle-sahara-veneer-pivot-hinge-pedestal

Sahara

venesta-washrooms-premium-luxury-toilet-cubicle-sahara-glass-indicator-bolt

Sahara Glass

Product specifications

  • Overall height

    HPL: 2139mm.

    ColourCoat: 2139mm.

    ColourCoat High Gloss: 2139mm.

    Veneer: 2139mm.

    Maximum height

    HPL: 2909mm.

    ColourCoat: 2909mm.

    ColourCoat High Gloss: 2909mm.

    Veneer: 2909mm.

    Maximum depth

    HPL: 2086mm.

    ColourCoat: 2086mm.

    ColourCoat High Gloss: 2086mm.

    Veneer: 2086mm.

    Floor clearance

    100mm as standard.

    Also a choice of 20mm, 50mm or 150mm.

    Minimum ceiling clearance

    20mm.

  • HPL

    Doors are 36mm nominal thickness and partitions are 26mm nominal thickness, both with an MDF core.

    ColourCoat

    Doors are 35mm nominal thickness and partitions are 26mm nominal thickness, both with an MDF core. Sprayed with a coat of primer and finished with 20% gloss pigmented polyurethane lacquer.

    ColourCoat High Gloss

    Doors are 35mm nominal thickness and partitions are 26mm nominal thickness, both with an MDF core. Sprayed with a coat of primer and finished with 80% gloss pigmented polyurethane lacquer.

    Veneer

    Doors are 36mm nominal thickness chipboard faced with real wood veneer. Partitions are 26mm nominal thickness with an MDF core, faced with real wood veneer. Door and partition edges are lipped with matching ABS from the standard Venesta colour range.

  • Panels and doors

    Available in HPL, ColourCoat, ColourCoat High Gloss and Veneer.

    Colour finish

    HPL: 34 colours from the standard range.

    ColourCoat and ColourCoat High Gloss: Any RAL classic colour, excluding metallic and fluorescent colours.

    Veneer: 11 Alpi real wood veneers (varying price points).

    Cubicle hardware: Satin anodised aluminium and stainless steel.

    Edge treatment

    HPL: Matching 0.6mm ABS lipping.

    ColourCoat: Edges are sprayed with one coat of primer and finished with 20% gloss pigmented polyurethane lacquer.

    ColourCoat High Gloss: Edges are sprayed with one coat of primer and finished with 80% gloss pigmented polyurethane lacquer.

    Veneer: Complementing ABS edging from the standard range.

    Headrail

    40mm slimline satin anodised aluminium with matching end cap.

    Pilasters

    High strength, slimline extruded satin anodised aluminium pilasters specially designed to conceal fixings.

  • Indicator bolt

    Stainless steel indicator bolt with slimline mortice lock and unique emergency release function.

    Hinge

    Stainless steel soft self-closing pilaster mounted pivot hinges, supplied as an assembly.

    Pedestal

    Stainless steel 100mm height adjustable (+10mm) as standard. Also a choice of 50mm or 150mm height pedestals.

    Fixings

    Partition to wall: Satin anodised aluminium Z-clip.

    Pilaster to partition: Aluminium Z-clip.

    Pilaster to wall: Satin anodised channel and Z-clip.

  • Accessories

    Coat hooks available.

Colours & materials

Select from a range of colours and materials, and order samples.

  • Laminate

    Laminate (MFC/HPL/SGL)

    MFC (Melamine Faced Chipboard)

    Best for: Dry environments with light to moderate use

    MFC panels are manufactured from moisture-resistant chipboard faced with decorative paper and a melamine resin surface. This creates a durable, cost-effective finish suitable for lower traffic washrooms. Panels are 19mm nominal thickness with ABS-lipped edges for protection.

    MFC is a practical choice for offices, commercial buildings and other low-use environments where style and value are important.

    Available in 34 laminate colours and across all Venesta V ranges.

    HPL (High Pressure Laminate)

    Best for: Busier washrooms and higher traffic environments

    HPL panels feature a high pressure laminate surface made from multiple layers of kraft paper bonded together with phenolic resins, finished with a decorative layer. The laminate is then bonded to a moisture-resistant chipboard core, creating a panel that is more resistant to impact, scratches and general wear. Panels are 19mm nominal thickness with ABS-lipped edges.

    HPL is commonly specified for schools, universities, offices and shopping centres, where washrooms experience heavier daily use.

    Available in 34 laminate colours across a wide range of Venesta cubicle systems.

    SGL (Solid Grade Laminate)

    Best for: Wet areas and high vandalism environments

    SGL is a solid laminate panel manufactured from layers of kraft paper bonded with phenolic resins under heat and pressure, forming an extremely dense and durable material. It is fully waterproof and highly impact resistant. Panels are 13mm nominal thickness with polished radiused edges.

    SGL is ideal for leisure centres, stadiums, transport hubs and other demanding environments, where durability and hygiene are essential.

    Available in 34 laminate colours with both standard and bespoke sizing options.

  • ColourCoat

    Colour Coat

    ColourCoat is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat have a gloss value of 20%.

    Edges are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.

    Note: for V3 ColourCoat products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

  • ColourCoat High Gloss

    Colour Coat High Gloss

    ColourCoat High Gloss is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat High Gloss have a gloss value of 80%.

    Edges are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.

    Note: for V3 ColourCoat High Gloss products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

  • Veneer

    Real Wood Veneer

    Our sleek Alpi real wood veneer washroom finishes have been carefully selected to bring warmth, vitality and luxury to your designs. Hardwearing, sustainable and great to look at, our real wood veneers are available across a range of our washroom systems.

    Our real wood veneers are split into price brackets, with Group 1 being the lowest and Group 3 being the highest costs:

    Group 1: Ash (Crown Cut), European Oak (Crown Cut)
    Group 2: American Black Walnut (Crown Cut), American Black Walnut (Straight Grain), European Oak (Straight Grain), Fumed Oak (Half Crown), American White Oak (Straight Grain), Teak (Straight Grain), Wenge (Straight Grain)
    Group 3: Ebony (Straight Grain), Rosewood (Crown Cut)
