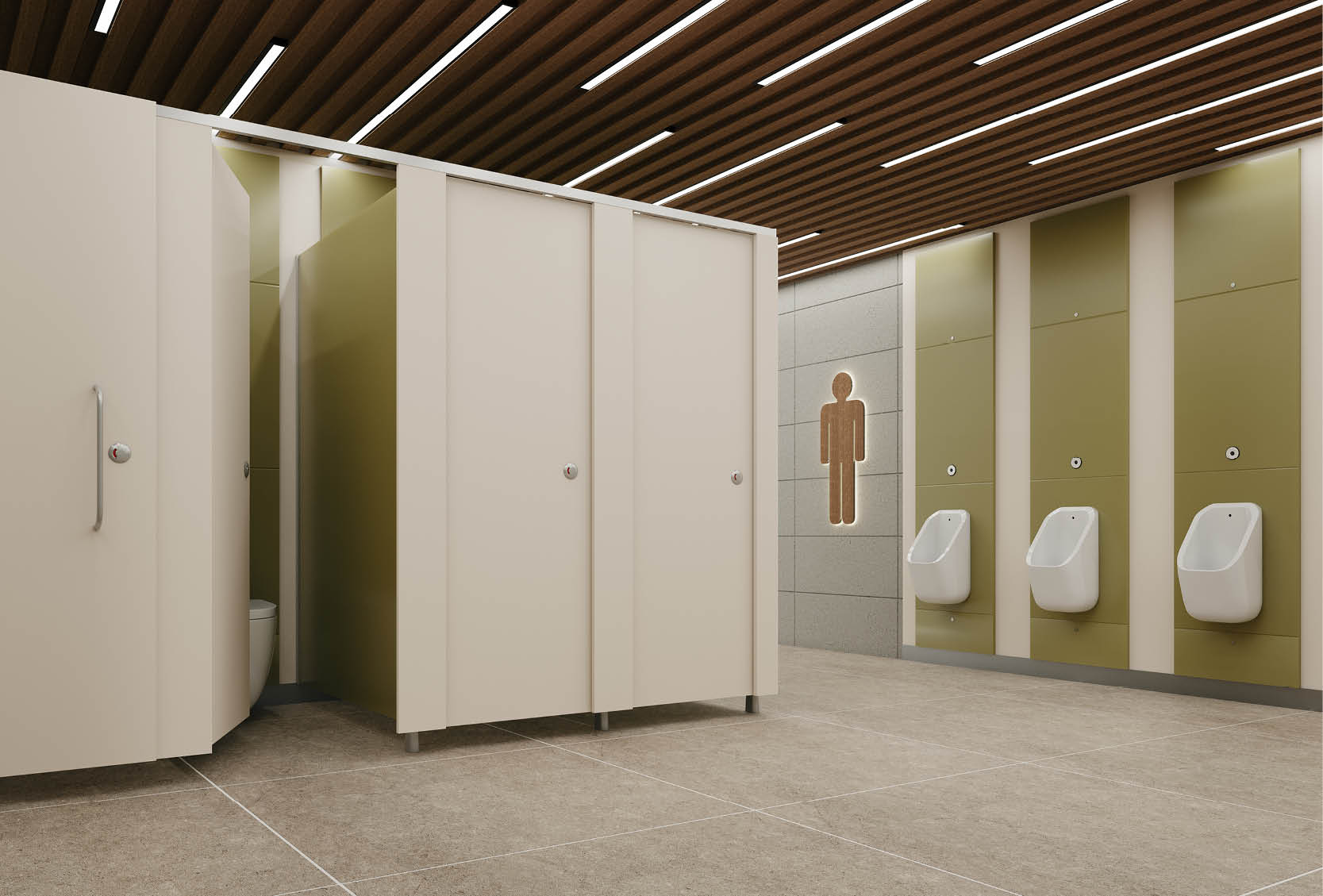

Award is simple to install and gives you great design flexibility. Available in 34 vibrant colours and four screen prints, with sleek ABS or powder coated aluminium fittings.

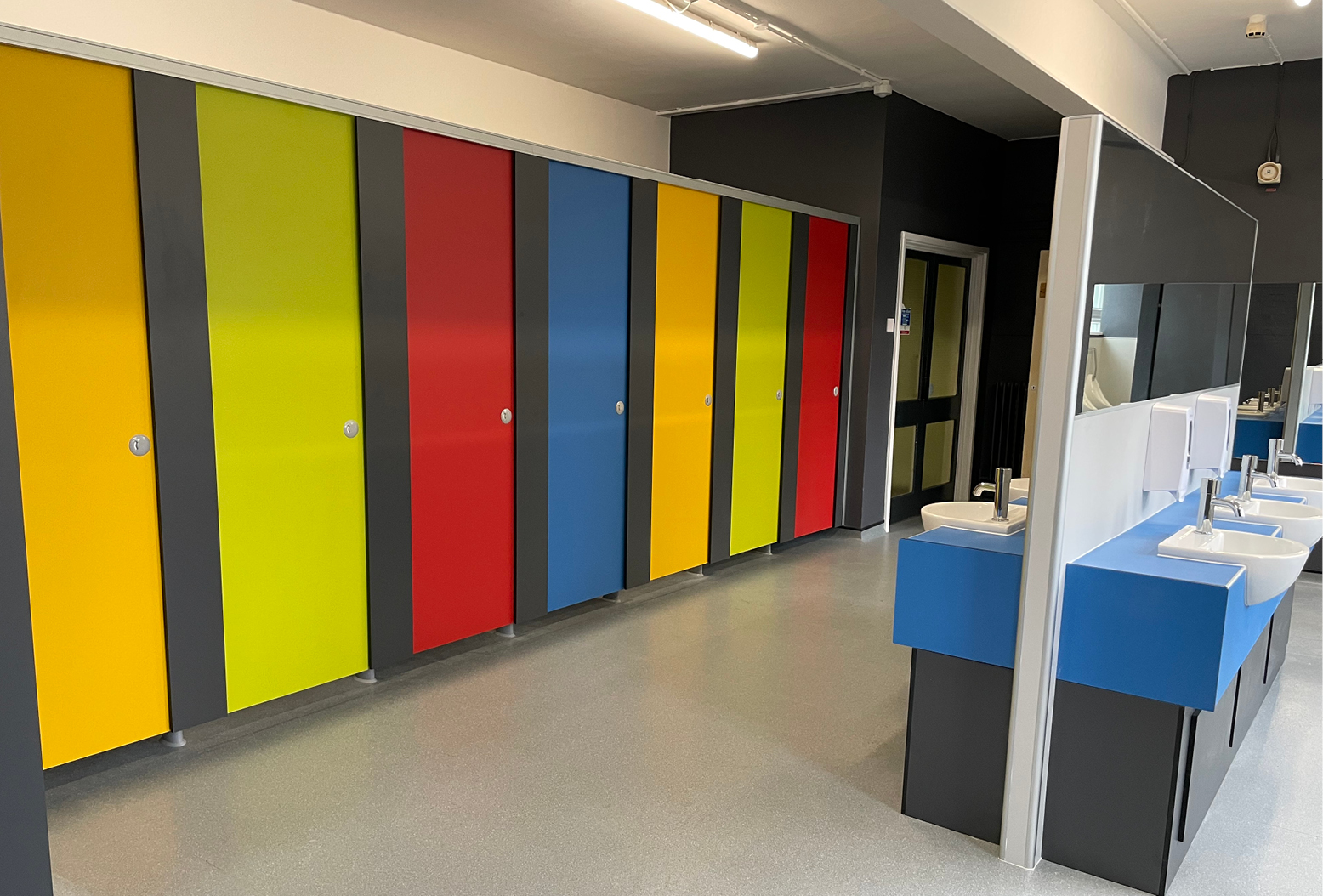

It's a popular choice with schools. Award has three different height options to suit all ages. It can also be specified for shower cubicles in SGL and a shower curtain track option.
These toilet cubicles can be manufactured in MFC, HPL or SGL so you get to choose cubicles that are completely appropriate for your site's setting, budget and style.
Low level door options for children.
Standard height: 2000mm.
Children's option 1: 1300mm.
Children's option 2: 1100mm.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness. Edges lipped with ABS.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL & SGL: 34 colours.
HPL: A choice of four fun screen prints.
Cubicle hardware: Satin anodised aluminium and ABS or Light Grey powder coated aluminium.
MFC and HPL: Matching ABS lipping.
SGL: Polished black radiused edge.
Rigid satin anodised aluminium headrail with matching end cap.
Universal aluminium anti-tamper safety hinge.
Satin anodised aluminium u-channels which offer simple installation on site. Allows tolerance for uneven walls.
Easy grip indicator bolt with emergency release facility and concealed fixings.
Height adjustable for uneven floors, with concealed fixings. Located on partitions to give a floating appearance.
Coat hooks and toilet roll holders available.
|File name||File type|
|Award MFC & HPL 2BTW||CAD Blocks|
|Award SGL 2BTW||CAD Blocks|
|Award MFC & HPL 2WA||CAD Blocks|
|Award SGL 2WA||CAD Blocks|
|Award SGL Shower (Curtain)||NBS|
|Award SGL Shower (Door)||NBS|
