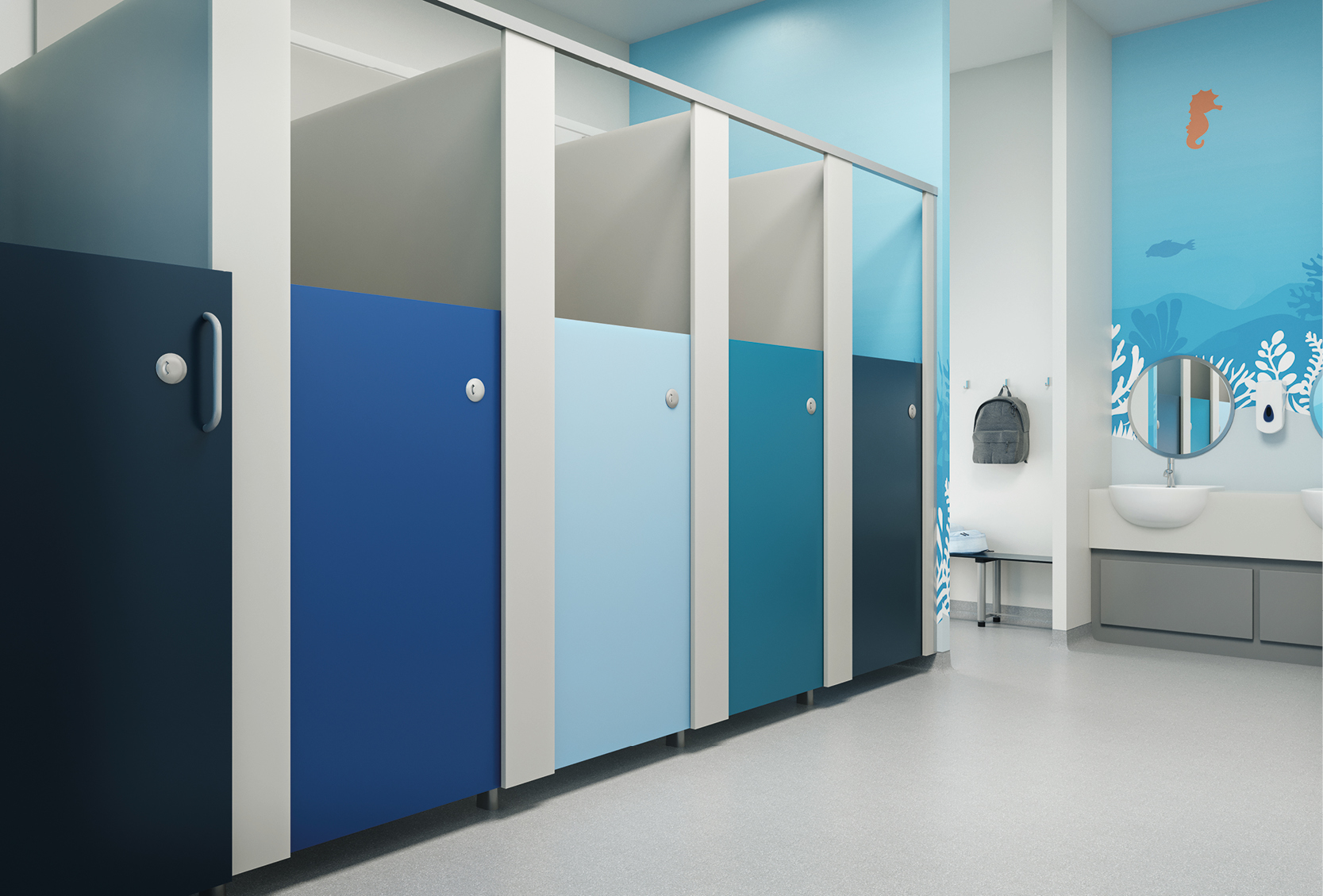

Award Low-Level

Balancing privacy and supervision

Balancing privacy with the need to supervise children is something to consider when designing education washrooms. The option of low height doors ensures you can achieve both.

With two different heights to choose from, Award Low-Level is simple to install and gives you great design flexibility. Available in 34 vibrant colours, Award Low-Level can be specified with ABS, satin anodised aluminium or satin anodised effect powder coated zinc fittings.

These toilet cubicles can be manufactured in MFC, HPL or SGL so you can choose the panelling that's completely appropriate for your site's setting, budget and style.

Features

V1 - Entry level, low cost cubicle range.
Perfect for nurseries and primary school washrooms.
Low level cubicles with a choice of door heights.
Robust fittings with child friendly safety features.
Satin anodised aluminium wall channels and headrail for additional rigidity.
Streamlined, "floating" appearance.

Product specifications

Overall height

MFC: 2100mm.

HPL: 2100mm.

SGL: 2100mm.

Door height options

Children's option 1: 1300mm.

Children's option 2: 1100mm.

Standard height: 2000mm >

Maximum depth

MFC: 2097mm.

HPL: 2067mm.

SGL: 1921mm.

Floor clearance

100mm.
MFC

For dry environments with low risk of vandalism. Panels are manufactured from 19mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.

HPL

For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 19mm nominal thickness. Edges lipped with ABS.

SGL

Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Panels and doors

Available in MFC, HPL and SGL.

Colour finish

MFC, HPL and SGL: 34 colours from the standard range.

Cubicle hardware: Light Grey ABS, satin anodised aluminium or satin anodised effect powder coated zinc.

Edge treatment

MFC and HPL: Matching ABS lipping.

SGL: Polished black radiused edge.

Headrail

Rigid satin anodised aluminium headrail with matching end cap.
Indicator bolt

Easy grip sliding bolt with emergency release facility and concealed fixings. Available in satin anodised effect powder coated zinc or Light Grey ABS.

Hinge

Anti-finger trap satin anodised aluminium rise and fall butt hinge. Outward opening hinge option available.

Pedestal

Height adjustable for uneven floors, with concealed fixings, available in Light Grey ABS or satin anodised effect powder coated zinc. Where possible, pedestals are located on partitions to give a floating appearance.

Fixings

Partition to wall: Continuous satin anodised aluminium U-channel.

Pilaster to partition: Continuous satin anodised aluminium U-channel.

Pilaster to wall: Continuous satin anodised aluminium U-channel.
Accessories

Coat hooks and toilet roll holders available.

File name	File type
Award Low-Level	Brochure	Download Add to a project + Project
Education	Brochure	Download Add to a project + Project
Product Portfolio	Brochure	Download Add to a project + Project
Colour Selector	Brochure	Download Add to a project + Project
Award Low Level MFC & HPL	BIM	Sign up/log in for access
Award Low Level SGL	BIM	Sign up/log in for access
Award MFC & HPL 2BTW	CAD Blocks	Sign up/log in for access
Award SGL 2BTW	CAD Blocks	Sign up/log in for access
Award MFC & HPL 2WA	CAD Blocks	Sign up/log in for access
Award SGL 2WA	CAD Blocks	Sign up/log in for access
Award & Award Low Level MFC	NBS	Download Add to a project + Project
Award & Award Low Level HPL	NBS	Download Add to a project + Project
Award & Award Low Level SGL	NBS	Download Add to a project + Project
Award	Fixing Instructions	Sign up/log in for access
Award Low Level	Technical Datasheet	Download Add to a project + Project

Colours & materials

Select from a range of colours and materials, and order samples.

Laminate

Laminate (MFC/HPL/SGL)

MFC (Melamine Faced Chipboard)

Best for: Dry environments with light to moderate use

MFC panels are manufactured from moisture-resistant chipboard faced with decorative paper and a melamine resin surface. This creates a durable, cost-effective finish suitable for lower traffic washrooms. Panels are 19mm nominal thickness with ABS-lipped edges for protection.

MFC is a practical choice for offices, commercial buildings and other low-use environments where style and value are important.

Available in 34 laminate colours and across all Venesta V ranges.

HPL (High Pressure Laminate)

Best for: Busier washrooms and higher traffic environments

HPL panels feature a high pressure laminate surface made from multiple layers of kraft paper bonded together with phenolic resins, finished with a decorative layer. The laminate is then bonded to a moisture-resistant chipboard core, creating a panel that is more resistant to impact, scratches and general wear. Panels are 19mm nominal thickness with ABS-lipped edges.

HPL is commonly specified for schools, universities, offices and shopping centres, where washrooms experience heavier daily use.

Available in 34 laminate colours across a wide range of Venesta cubicle systems.

SGL (Solid Grade Laminate)

Best for: Wet areas and high vandalism environments

SGL is a solid laminate panel manufactured from layers of kraft paper bonded with phenolic resins under heat and pressure, forming an extremely dense and durable material. It is fully waterproof and highly impact resistant. Panels are 13mm nominal thickness with polished radiused edges.

SGL is ideal for leisure centres, stadiums, transport hubs and other demanding environments, where durability and hygiene are essential.

Available in 34 laminate colours with both standard and bespoke sizing options.

View technical performance

Find with VEN number
- Rouge

  VEN324 | LRV 17
  Order a sample
- Papaya

  VEN370 | LRV 35
  Order a sample
- Golden

  VEN366 | LRV 52
  Order a sample
- Canary

  VEN365 | LRV 65
  Order a sample
- Lime

  VEN354 | LRV 54
  Order a sample
- Clover

  VEN378 | LRV 20
  Order a sample
- Olive

  VEN367 | LRV 38
  Order a sample
- Duck Egg

  VEN368 | LRV 54
  Order a sample
- Marine Green

  VEN360 | LRV 46
  Order a sample
- Hydrangea

  VEN361 | LRV 55
  Order a sample
- Cornflower Blue

  VEN359 | LRV 22
  Order a sample
- Pacific

  VEN353 | LRV 20
  Order a sample
- Peacock

  VEN371 | LRV 25
  Order a sample
- Teal

  VEN377 | LRV 11
  Order a sample
- Indigo

  VEN356 | LRV 8
  Order a sample
- Merlot

  VEN364 | LRV 8
  Order a sample
- Macaroon

  VEN348 | LRV 24
  Order a sample
- Peony

  VEN376 | LRV 52
  Order a sample
- Porcelain

  VEN352 | LRV 81
  Order a sample
- Suede

  VEN369 | LRV 66
  Order a sample
- Cloud

  VEN351 | LRV 58
  Order a sample
- Shadow

  VEN350 | LRV 37
  Order a sample
- Gunmetal

  VEN349 | LRV 10
  Order a sample
- Noir

  VEN337 | LRV 5
  Order a sample
- Steel

  VEN319 | LRV 42
  Order a sample
- Light Parchment

  VEN363 | LRV 57
  Order a sample
- Grey Parchment

  VEN362 | LRV 31
  Order a sample
- Vintage Grey

  VEN372 | LRV 27
  Order a sample
- Weathered Grey

  VEN358 | LRV 21
  Order a sample
- Black Ash

  VEN374 | LRV 9
  Order a sample
- African Wenge

  VEN373 | LRV 11
  Order a sample
- Dark Walnut

  VEN355 | LRV 13
  Order a sample
- Golden Oak

  VEN357 | LRV 36
  Order a sample
- Soft Oak

  VEN375 | LRV 45
  Order a sample
