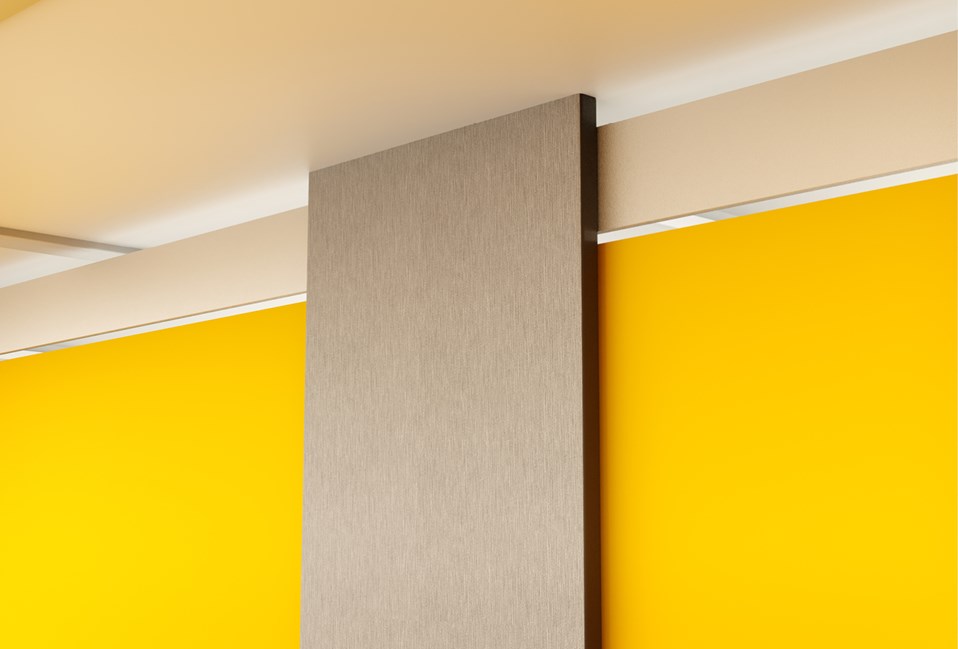

Rigid wall channels, aluminium headrails, and floor-to-ceiling pilasters set into a unique aluminium shoe make Titan cubicles substantial and stable. And with just 10mm ceiling and floor clearances, they provide maximum privacy - ideal for unisex toilet facilities.
Manufactured to your bespoke requirements, Titan is available in 34 panel colours on MFC, HPL or SGL core board so you can specify the most appropriate option to meet the site demands and your budget.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges lipped with ABS.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness. Edges lipped with ABS.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL and SGL: 34 colours.
Cubicle hardware: Satin anodised aluminium and powder coated aluminium in Light Grey.
MFC & HPL: Matching ABS lipping.
SGL: Polished black radiused edge.
Easy to fix, one piece construction. Available in satin anodised aluminium, complete with colour matched cover.
Universal aluminium anti-tamper safety hinge in satin anodised aluminium. Satin anodised aluminium outward opening rise and fall hinge option available.
Satin anodised aluminium wall channel and privacy skirting.
Light Grey powder coated aluminium lever operated bolt with circular face plate and emergency release facility. Face plate and keep with concealed fixings.
Unique aluminium shoe.
Coat hooks and toilet roll holders available.
|File name||File type|
|Titan MFC & HPL 2BTW||CAD Blocks|
|Titan SGL 2BTW||CAD Blocks|
|Titan MFC & HPL 2WA||CAD Blocks|
|Titan SGL 2WA||CAD Blocks|
