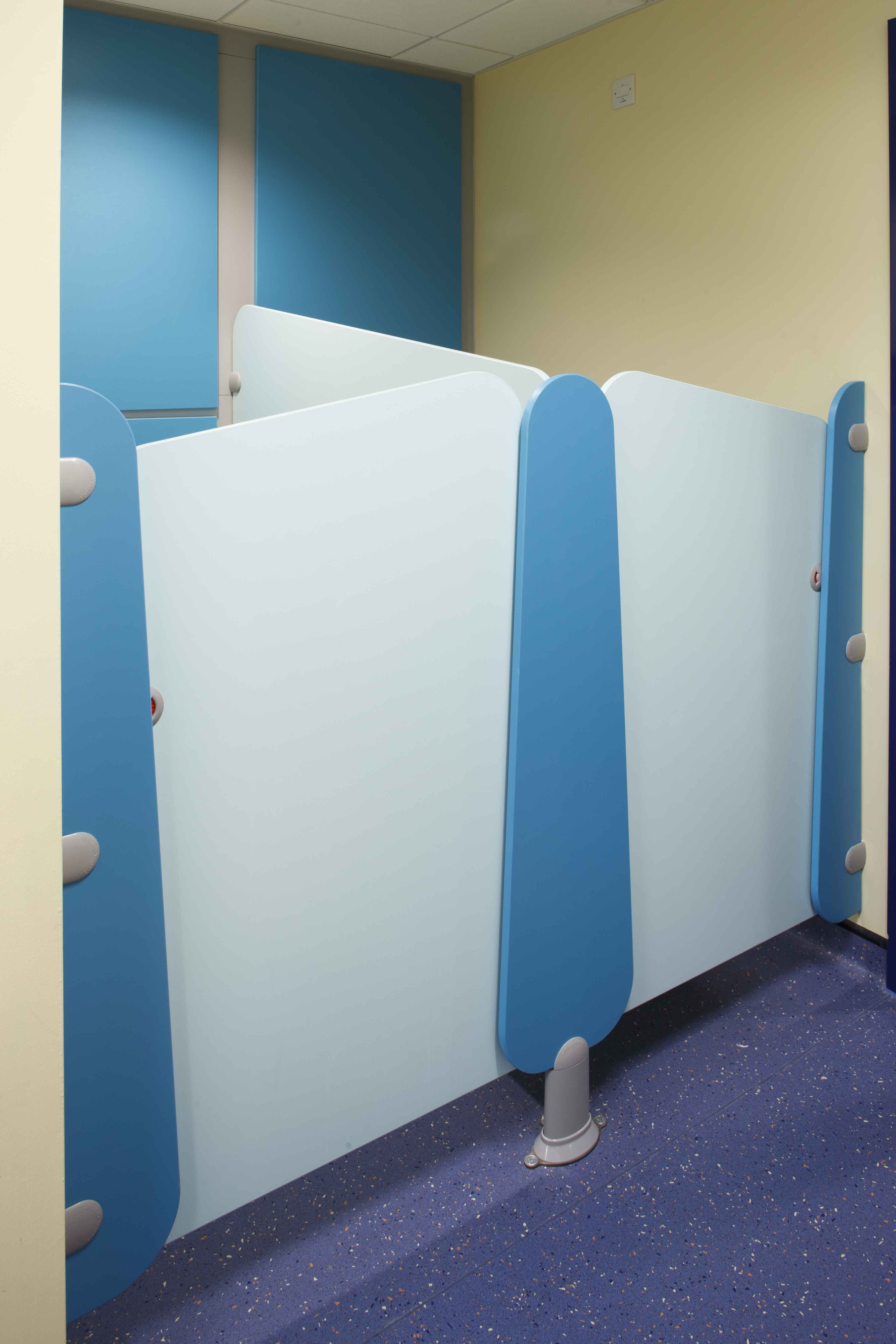

Delivering fun and safety in equal measure, Lollipop features two door height options, with a unique pedestal design offering extra rigidity, all in a choice of vibrant colours and jolly screenprints.
Lollipop also features specially designed safety hinges, magnetic catches and easy to operate emergency release indicator bolts.

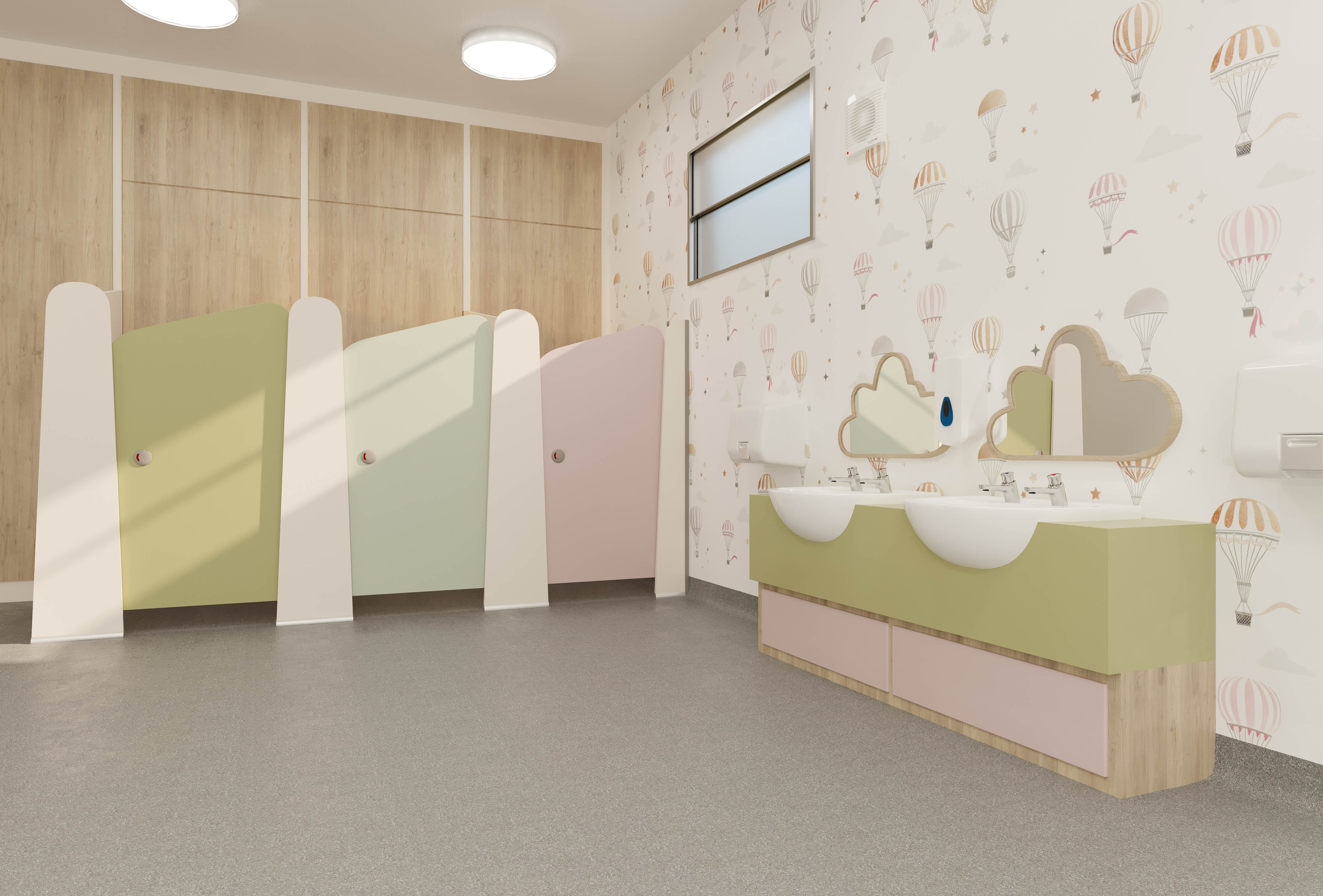

Complete the look with matching vanities with shaped under panels which are available in 600mm high K2 profile.
Height A - 1350mm.
Height B - 1550mm.
Full height - 1950mm.
Door Size A: 900mm to lowest point, 1000mm to highest point: 1150mm from FFL to lowest point including 150mm ground clearance. Pilaster height 1350mm.
Door Size B: 1100mm to lowest point, 1200mm to highest point: 1250mm from FFL to lowest point including 150mm ground clearance. Pilaster height 1350mm.
1500mm maximum recommended from face of back wall or rear ducting.
For dry environments with low risk of vandalism. Panels are manufactured from 18mm nominal thickness high performance moisture-resistant melamine faced chipboard. Edges finished with matching or contrasting ABS lipping.
For more heavily used washrooms, panels are heat, scratch and impact resistant. Manufactured from moisture-resistant chipboard faced with high pressure laminate, panels are 18mm nominal thickness. Edges finished with matching or contrasting ABS lipping.
Solid grade laminate is extremely resistant to impact and all surfaces are impervious to water. Panels are 13mm nominal thickness with polished black radiused edges.
Available in MFC, HPL and SGL.
MFC, HPL and SGL: 34 laminate colours & 4 screen prints (HPL only).
Cubicle hardware: ABS Light Grey.
MFC & HPL: Matching or contrasting ABS lipping.
SGL: Polished black radiused edges.
Easy to fix, one piece construction. Available in Light Grey powder coated aluminium with matching end cap.
Standard (with no headrail): Sound concrete sub-floor required.
Full height (with headrail): Suitable for any floor type.
Powder coated aluminium safety hinge in Light Grey.
Universal u-channels offering simple installation on site available in Light Grey. Allows tolerance for uneven walls.
Easy grip indicator bolt with emergency release facility and concealed fixings. Magnetic catch option in lieu of indicator bolts.
Height adjustable for uneven floors, with concealed fixings - fixed to pilasters and/or partitions.
Coat hooks and toilet roll holders available.
|File name||File type|
|Lollipop MFC & HPL 2WA||CAD Blocks|
|Lollipop SGL 2BTW||CAD Blocks|
|Lollipop SGL 2WA||CAD Blocks|
|Lollipop MFC & HPL 2BTW||CAD Blocks|
|Lollipop Full Height MFC||NBS|
|Lollipop Full Height HPL||NBS|
|Lollipop Full Height SGL||NBS|
|Lollipop Full Height||Fixing Instructions|
