Infinite

The ultimate in classic modernity, Infinite gives a better impression where it is keenly noticed.

venesta-washrooms-toilet-cubicles-infinite

Perfect for the most stylish environments.

The Infinite cubicle ranges have an array of innovative features. Floating pilasters, adjustable stainless steel pedestals and a unique 3-part aluminium headrail system gives a flush-fronted, endless cubicle finish.

Available in four high grade finishes, including HPL, real wood veneers in a range of rich, earthy tones or ColourCoat and ColourCoat High Gloss in any RAL colour, give you infinite design possibilities.

Features

  • V3 - Premium cubicles.
  • A minimal look with clean lines.
  • Bespoke cubicles for various configurations.
  • Full height option available, with 20mm ceiling and 50mm floor clearance.
  • Sleek stainless steel and aluminium fittings.
  • Flush fronted, HPL, real wood veneers or ColourCoat/ColourCoat High Gloss in any RAL colour.
venesta-washrooms-toilet-cubicles-infinite2

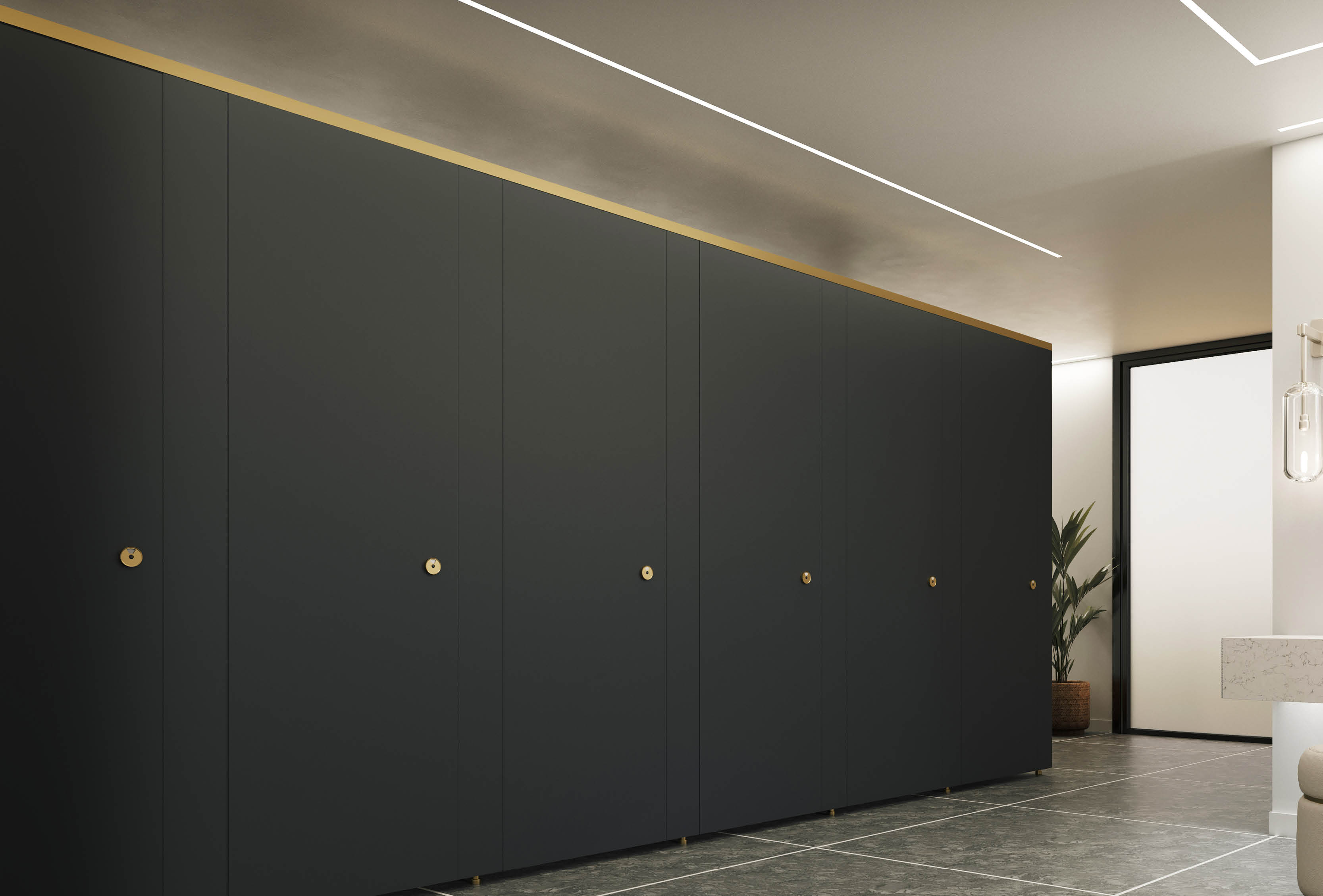

A luxurious flush fronted, floating toilet cubicle solution.
venesta-washrooms-toilet-cubicles-infinite-indicator-bolt-mortice-lock

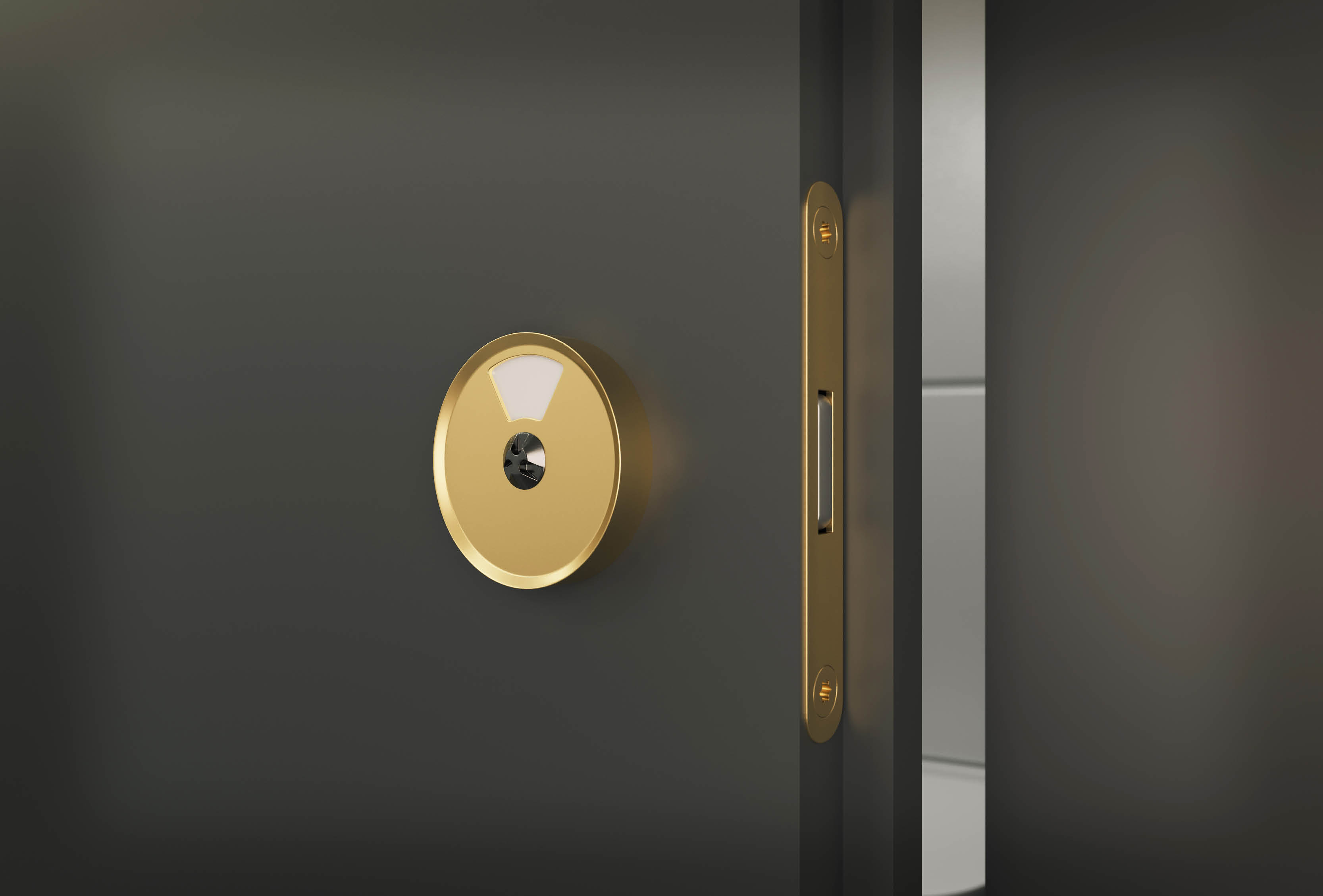

Sleek stainless steel and aluminium fittings as standard on this V3 cubicle range.
venesta-washrooms-toilet-cubicles-infinite-ceiling-clearance
Minimal, sleek fittings as standard on this premium toilet cubicle range.
venesta-washrooms-toilet-cubicles-infinite-pedestal
Adjustable stainless steel pedestals are set back on the partitions for a modern and minimal design.

The complete range...

Explore the options available when specifying Infinite - standard or full height toilet cubicles.

venesta-washrooms-toilet-cubicles-infinite-pedestal

Infinite

venesta-washrooms-toilet-cubicles-infinite-full-height-floor-clearance

Infinite Full Height

Product specifications

  • Overall height

    HPL: 2070mm.

    ColourCoat: 2070mm.

    ColourCoat High Gloss: 2070mm.

    Veneer: 2070mm.

    Maximum height

    HPL: 2830mm.

    ColourCoat: 2830mm.

    ColourCoat High Gloss: 2830mm.

    Veneer: 2830mm.

    Maximum depth

    HPL: 2090mm.

    ColourCoat: 2090mm.

    ColourCoat High Gloss: 2090mm.

    Veneer: 2090mm.

    Floor clearance

    50mm.

    Minimum ceiling clearance

    20mm.

  • HPL

    Doors and pilasters are 44mm nominal thickness with an MDF core, partitions are 25mm nominal thickness.

    ColourCoat

    Doors and pilasters are 44mm nominal thickness MDF, partitions are 25mm MDF, both are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.

    ColourCoat High Gloss

    Doors and pilasters are 44mm nominal thickness MDF, partitions are 25mm MDF, both are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.

    Veneer

    Doors and pilasters are 44mm nominal thickness MDF faced with real wood veneer, partitions are 25mm MDF core faced with real wood veneer. Door, pilaster and partition edging in complementing ABS from the Venesta standard colour range.

  • Panels and doors

    Available in HPL, ColourCoat, ColourCoat High Gloss and Veneer.

    Colour finish

    HPL: 34 colours from the standard range.

    ColourCoat and ColourCoat High Gloss: Any RAL classic colour, excluding metallic and fluorescent colours.

    Veneer: 11 Alpi real wood veneers (varying price points).

    Cubicle hardware: Stainless steel and aluminium. Optional choice of black, brass or bronze effect coatings.

    Edge treatment

    HPL: Matching ABS lipping.

    ColourCoat: Edges are sprayed with one coat of primer and finished with 20% gloss pigmented polyurethane lacquer.

    ColourCoat High Gloss: Edges are sprayed with one coat of primer and finished with 80% gloss pigmented polyurethane lacquer.

    Veneer: Complementing ABS edging from the standard range.

    Headrail

    Slimline profile satin anodised aluminium headrail with 3 part fixing system allowing cubicles to finish 20mm below ceiling height. Stainless steel end cap.

  • Indicator bolt

    Stainless steel indicator bolt with slimline mortice lock and unique emergency release function.

    Hinge

    Stainless steel effect aluminium hinge (lift off available).

    Pedestal

    Adjustable stainless steel pedestal.

    Fixings

    Partition to wall: Discreet satin anodised aluminium H-channel and Z-clips.

    Pilaster to partition: Steel Z-clips.

    Pilaster to wall: Discreet satin anodised aluminium H-channel and Z-clips.

  • Accessories

    Coat hooks and toilet roll holders available.

Colours & materials

Select from a range of colours and materials, and order samples.

  • Laminate

    Laminate (MFC/HPL/SGL)

    MFC

    Our MFC toilet cubicles and panelling are available in all of our V Ranges, enabling you the ultimate style on a budget. We believe in matching products to our clients’ budgets and specifications. Quality doesn’t have to be expensive, as proved by our MFC washroom cubicles and panelling. Manufactured from 19mm nominal thickness high performance, melamine-faced chipboard with ABS edging, they are the ideal solution for dry environments with a low risk of vandalism. Although designed for dry room environments, our MFC toilet cubicles and panelling are nonetheless manufactured from high performance moisture-proof chipboard. Our MFC toilet cubicles and panelling solutions are available in 34 different laminate colours.

    HPL

    Our high pressure laminate (HPL) washroom cubicles and panelling are the affordable solution for more heavily used areas. Heat, scratch, impact and cigarette burn resistant, our high pressure laminate toilet cubicles are available in 34 different laminate colours. Manufactured from moisture-resistant chipboard faced with high pressure laminate; panels are 19mm nominal thickness with edges lipped with ABS. Across our entire range of HPL toilet cubicles and panelling, you will find the quality is uppermost. Our HPL washroom cubicles are installed in schools, offices, shopping malls, universities, or wherever there is a need for a hardwearing, robust toilet and washroom solution. Venesta’s high pressure laminate washroom cubicles and panelling are durable, sturdy and impact resistant.

    SGL

    If you need ultimate water resistance and impact protection, we offer our SGL toilet cubicles and panelling. Manufactured from tough, 13mm solid grade laminate, our SGL toilet cubicles and panelling meet the most stringent specifications of durability and hygiene. Our SGL washroom cubicles and panelling are totally impervious to water and available in 34 laminate colours. Offering maximum resistance to vandalism, our SGL toilet cubicles and panels feature polished black radiused edges, and are a nominal 13mm in thickness. Enhanced by high quality fittings, and available in both standard and bespoke size options, our SGL washroom cubicles are the ultimate choice for demanding environments, whether wet or dry. We pride ourselves in offering you products that meet both your site requirements and your budget. Our SGL toilet cubicles are available in the majority of our ranges, meaning we have SGL washroom cubicles to meet your exact specifications.

  • ColourCoat

    Colour Coat

    ColourCoat is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat have a gloss value of 20%.

    Edges are sprayed with a coat of primer and finished with 20% gloss pigmented lacquer.

    Note: for V3 ColourCoat products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

  • ColourCoat High Gloss

    Colour Coat High Gloss

    ColourCoat High Gloss is our vibrant range of contemporary spray painted colours, with an MDF core. Doors and pilasters are 35mm nominal thickness, partitions are 18mm nominal thickness. Doors, pilasters and panels finished in ColourCoat High Gloss have a gloss value of 80%.

    Edges are sprayed with a coat of primer and finished with 80% gloss pigmented lacquer.

    Note: for V3 ColourCoat High Gloss products, any colour from the RAL Classic Colour Chart can be chosen (except fluorescent or metallic).

  • Veneer

    Real Wood Veneer

    Our sleek Alpi real wood veneer washroom finishes have been carefully selected to bring warmth, vitality and luxury to your designs. Hardwearing, sustainable and great to look at, our real wood veneers are available across a range of our washroom systems.

    Our real wood veneers are split into price brackets, with Group 1 being the lowest and Group 3 being the highest costs:

    Group 1: Ash (Crown Cut), European Oak (Crown Cut)
    Group 2: American Black Walnut (Crown Cut), American Black Walnut (Straight Grain), European Oak (Straight Grain), Fumed Oak (Half Crown), American White Oak (Straight Grain), Teak (Straight Grain), Wenge (Straight Grain)
    Group 3: Ebony (Straight Grain), Rosewood (Crown Cut)
